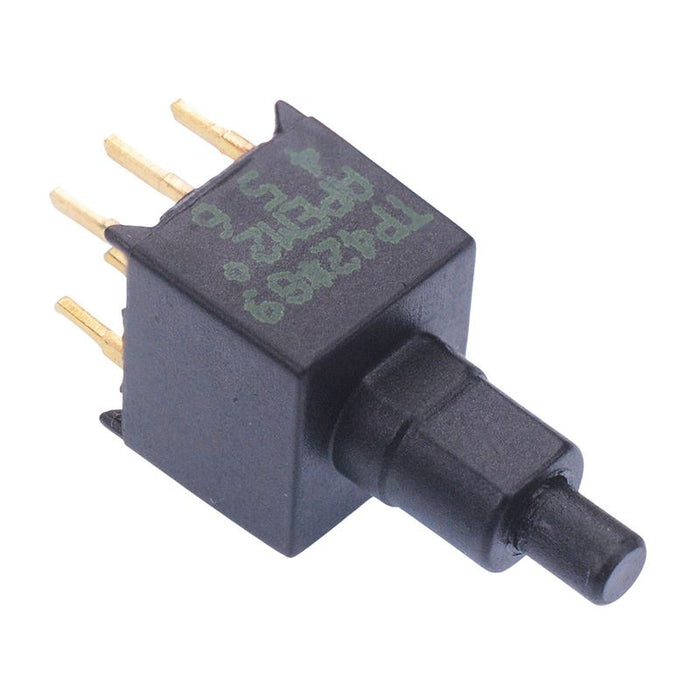

TP42P008000 APEM On-(On) Momentary Sub-Miniature PCB Push Button Switch DPDT
by APEM
SKU 486215
MPN: TP42P008000
Availability:
25 in stock
Original price
£6.27
-
Original price
£6.27
Original price
£6.27
Inc VAT
£6.27
-
£6.27
Current price
£6.27
Inc VAT
The TP42P008000 is a sub-miniature momentary push button switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications.
On-(On) momentary operation DPDT contacts PCB mounting Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20V
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | DPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4A 20VAC/DC |
| Current rating | 0.4A |
| Electrical life | 60,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | PBT |
| Mounting style | PCB |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -30°C to 85°C |
| Pitch | 2.54mm |
| Product series | TP |
| Switch operation | On-(On) |
| Terminal type | Solder |
| Voltage rating | 20VAC/DC |
