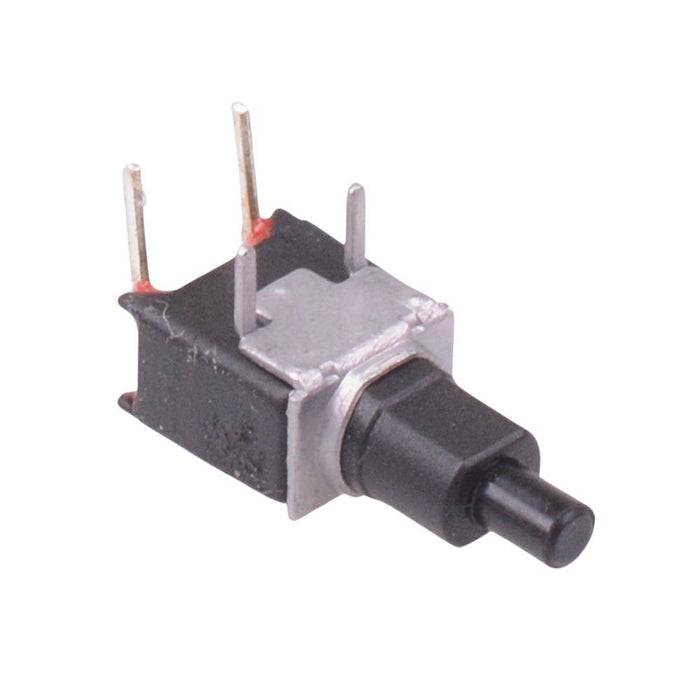

TP33W018000 APEM Off-(On) Momentary Sub-Miniature PCB Right Angle Horizontal Push Button Switch SPST
by APEM
SKU 490162
MPN: TP33W018000
Availability:
777 in stock
Original price
£4.87
-
Original price
£4.87
Original price
£4.87
£5.52
£5.52
-
£5.52
Current price
£5.52
The TP33W018000 is a sub-miniature momentary push button switch manufactured by APEM featuring SPST contacts, designed for right angle horizontal PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications.
Off-(On) momentary operation SPST contacts Right angle horizontal PCB mounting Silver plated brass terminals 2.54mm pitch Rating: 0.4A 20V
Specification
| Actuation | Momentary |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Silver Plated Brass |
| Contact Rating | 0.5A 48VAC/DC |
| Current Rating | 0.5A |
| Electrical Life | 20,000 Cycles |
| Illuminated | No |
| Material | PBT |
| MOQ | 1 |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -30°C to +85°C |
| Product Series | TP |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VAC/DC |
