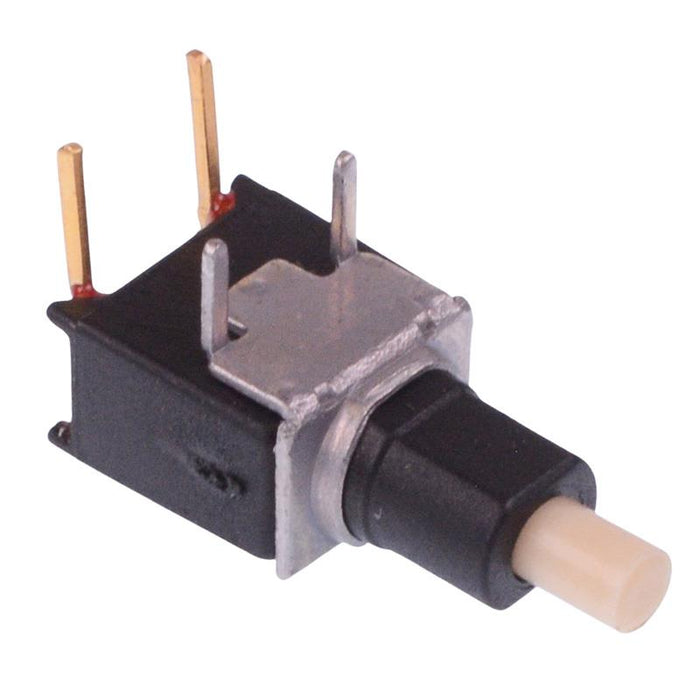

TP33W005100 APEM Off-(On) Momentary Subminiature Washable PCB Push Button Switch SPST

SKU 487365

MPN: TP33W005100

624 in stock
Original price £2.31 - Original price £2.31
Original price
£2.31 Inc VAT
£2.31 - £2.31
Current price £2.31 Inc VAT
The TP33W005100 is a momentary sub-miniature push button switch manufactured by APEM featuring SPST contacts, designed for PCB mounting. The switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

  • Off-(On) momentary operation
  • SPST contacts
  • Right angle PCB terminals
  • Horizontal mounting
  • Gold plated brass terminals
  • 5.08mm pitch
  • Rating: 0.4A 20VAC/DC
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPST
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -30°C to +85°C
    Pitch 5.08mm
    Product series TP
    Switch operation Off-(On)
    Terminal type Through Hole
    Voltage rating 20VAC/DC
