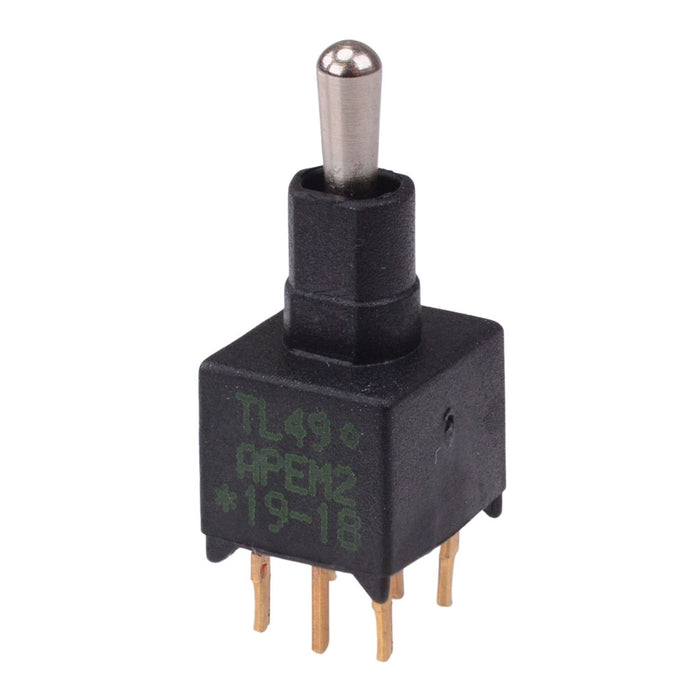

TL49P005000 APEM On-Off-On Sub-Miniature PCB Toggle Switch DPDT

SKU 486207

MPN: TL49P005000

49 in stock
Original price £6.65 - Original price £6.65
Original price
£6.65 Inc VAT
£6.65 - £6.65
Current price £6.65 Inc VAT
The TL49P005000 is a sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications.

  • On-Off-On operation
  • DPDT contacts
  • PCB mounting
  • Gold plated brass terminals
  • 2.54mm pitch
  • Rating: 0.4A 20V
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Electrical life 30,000 Cycles
    Illuminated No
    Material PBT
    Mounting style PCB
    Number of poles 2
    Number of positions 3
    Operating temperature -30°C to 85°C
    Pitch 2.54mm
    Product series TL
    Switch operation On-Off-On
    Terminal type Solder
    Voltage rating 20VAC/DC
