TL48Y0050 APEM On-Off-(On) Momentary Subminiature Washable PCB Bracket Toggle Switch DPDT
by APEM
SKU 490161
MPN: TL48Y0050
Availability:
4897 in stock
Original price
£3.40
-
Original price
£3.40
Original price
£3.40
Inc VAT
£3.40
-
£3.40
Current price
£3.40
Inc VAT

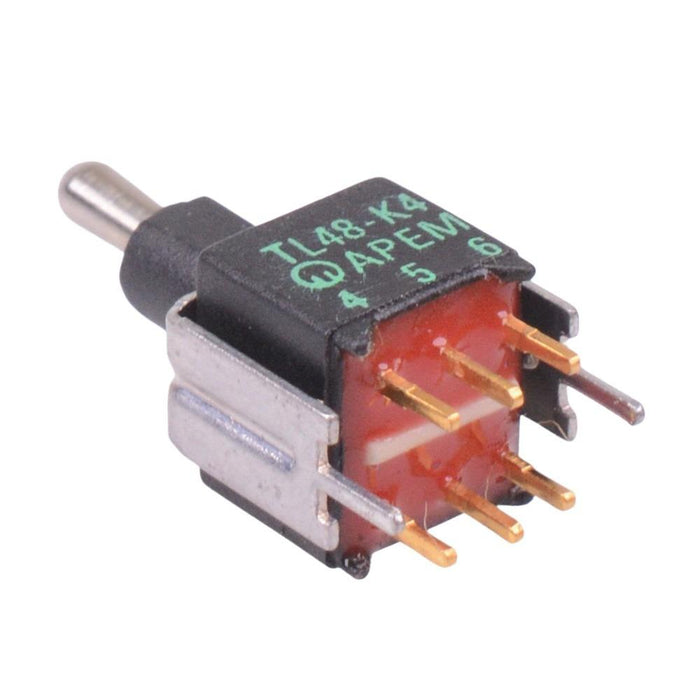

The TL48Y0050 is a sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
On-Off-(On) operation DPDT contacts Bracket PCB mounting Short nickel plated lever Gold plated brass terminals 2.54 x 5.08mm terminal pitch Rating: 0.4A 20VAC/DC
Specification
| Actuation | Latching / Momentary |
| Contact configuration | DPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4VA 20VAC/DC |
| Current rating | 0.4VA |
| Electrical life | 30,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | PCB |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -30°C to +85°C |
| Pitch | 2.54mm |
| Product series | TL |
| Switch operation | On-Off-(On) |
| Terminal type | Solder |
| Voltage rating | 20VAC/DC |
