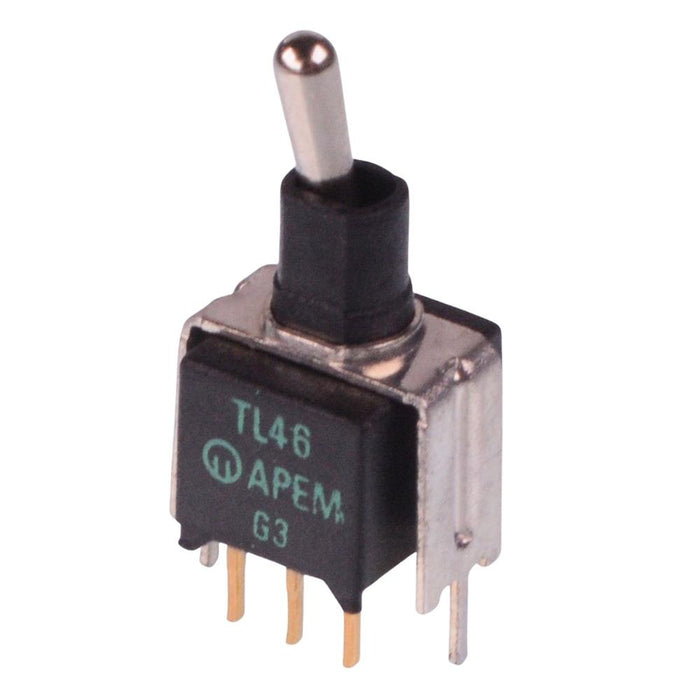

TL46Y005000 APEM On-On Subminiature Washable PCB Toggle Switch DPDT

by APEM
SKU 488195

MPN: TL46Y005000

Availability:
Out of stock
Sold out
Original price £2.64 - Original price £2.64
Original price
£2.64 Inc VAT
£2.64 - £2.64
Current price £2.64 Inc VAT
The TL46Y005000 is a sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

  • On-On operation
  • DPDT contacts
  • Bracket mounting
  • Straight PCB terminals
  • Short lever
  • Gold plated brass terminals
  • 2.54mm pitch
  • Rating: 0.4A 20VAC/DC
  • Specification
    actuation Latching
    back order lead time 10 Days
    contact configuration DPDT
    contact material Gold Plated Brass
    contact rating 0.4A 20AC/DC
    current rating 0.4A
    electrical life 60,000 Cycles
    illuminated No
    mounting style PCB
    number of poles 2
    number of positions 2
    operating temperature -30°C to +85°C
    pitch 2.54mm
    product series TL
    switch operation On-On
    terminal type Through Hole
    voltage rating 20VAC/DC
