TL46WW04000 APEM On-On Subminiature Washable PCB Toggle Switch DPDT
by APEM
SKU 487354
MPN: TL46WW04000
Availability:
171 in stock
Original price
£5.37
-
Original price
£5.37
Original price
£5.37
Inc VAT
£5.37
-
£5.37
Current price
£5.37
Inc VAT

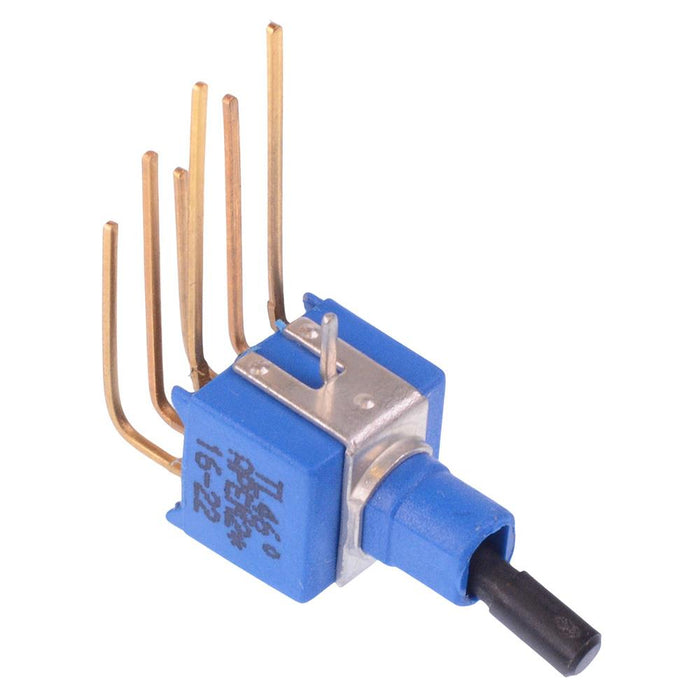

The TL46WW04000 is a sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
On-On operation DPDT contacts Vertical mounting Right angle PCB terminals Short insulated lever Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20VAC/DC
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | DPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4A 20AC/DC |
| Current rating | 0.4A |
| Electrical life | 60,000 Cycles |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -30°C to +85°C |
| Pitch | 2.54mm |
| Product series | TL |
| Switch operation | On-On |
| Terminal type | Through Hole |
| Voltage rating | 20VAC/DC |
