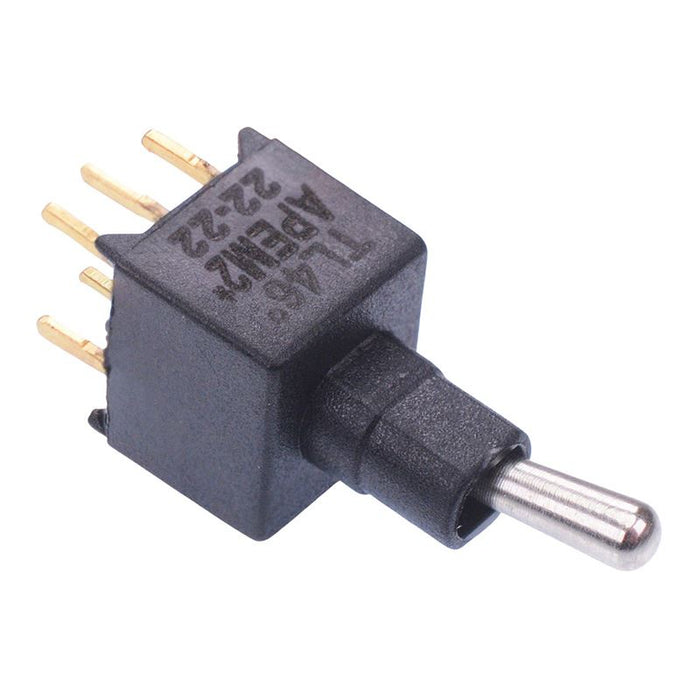

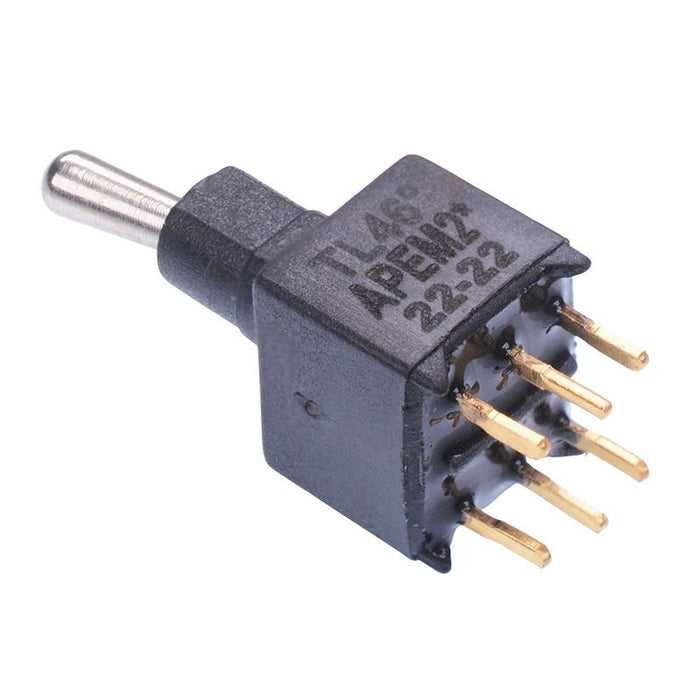

TL46P005000 On-On Sub-Miniature PCB Toggle Switch DPDT APEM

by APEM
SKU 486204

MPN: TL46P005000

Availability:
25 in stock
Original price £5.43 - Original price £5.43
Original price
£5.43
£5.43 - £5.43
Current price £5.43
The TL46P005000 is a sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications.

  • On-On operation
  • DPDT contacts
  • PCB mounting
  • Gold plated brass terminals
  • 2.54mm pitch
  • Rating: 0.4A 20V
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration DPDT
    Contact Material Gold Plated Brass
    Contact Rating 0.4A 20VAC/DC
    Current Rating 0.4A
    Electrical Life 60,000 Cycles
    Illuminated No
    Material PBT
    Mounting Style PCB
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -30°C to 85°C
    Pitch 2.54mm
    Product Series TL
    Switch Operation On-On
    Terminal Type Solder
    Voltage Rating 20VAC/DC
