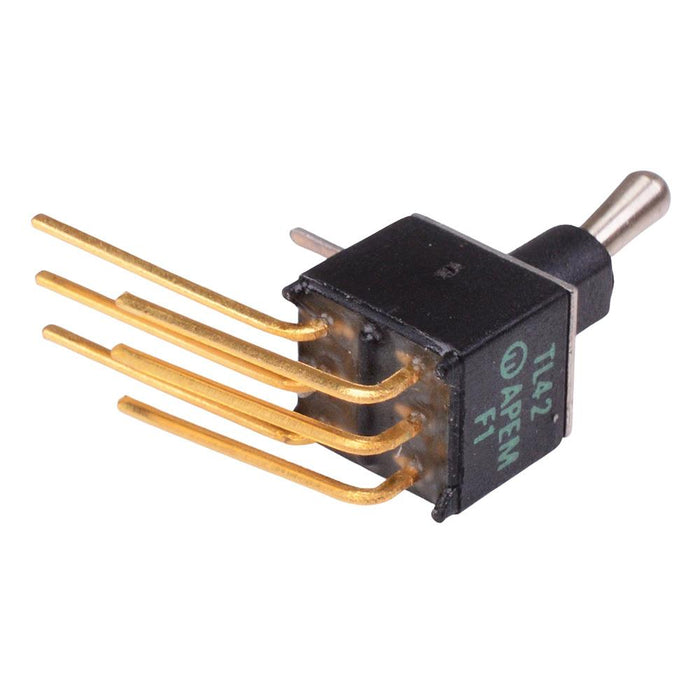

TL42W005008 APEM On-(On) Momentary Subminiature Washable PCB Toggle Switch DPDT

by APEM
SKU 488017

MPN: TL42W005008

Availability:
45 in stock
Original price £2.59 - Original price £2.59
Original price
£2.59 Inc VAT
£2.59 - £2.59
Current price £2.59 Inc VAT
The TL42W005008 is a momentary sub-miniature toggle switch manufactured by APEM featuring DPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

  • On-(On) momentary operation
  • DPDT contacts
  • Right angle extended PCB terminals
  • Horizontal PCB mounting
  • Short lever
  • Gold plated brass terminals
  • 2.54mm pitch
  • Rating: 0.4A 20VAC/DC
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20AC/DC
    Current rating 0.4A
    Electrical life 60,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 2
    Number of positions 2
    Operating temperature -30°C to +85°C
    Pitch 2.54mm
    Product series TL
    Switch operation On-(On)
    Terminal type Through Hole
    Voltage rating 20VAC/DC
