TL39W005400 APEM On-Off-On Subminiature Washable PCB Toggle Switch SPDT

by APEM
SKU 487876

MPN: TL39W005400

Availability:
97 in stock
Original price £2.36 - Original price £2.36
Original price
£2.36 Inc VAT
£2.36 - £2.36
Current price £2.36 Inc VAT

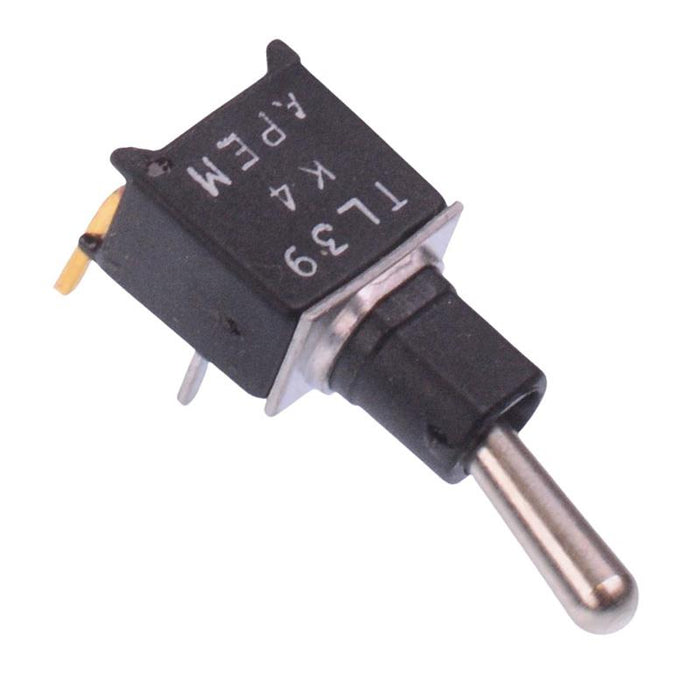

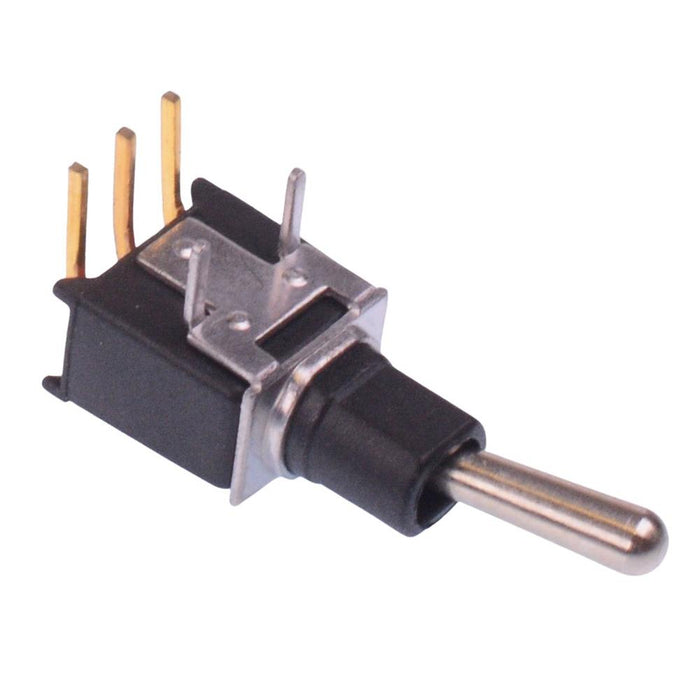

The TL39W005400 is a sub-miniature toggle switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

  • On-Off-On operation
  • SPDT contacts
  • Right angle PCB terminals
  • Horizontal PCB mounting
  • Medium lever
  • Gold plated brass terminals
  • 2.54mm pitch
  • Rating: 0.5A 48VAC/DC
Specification
Actuation Latching
Back order lead time 10 Days
Contact configuration SPDT
Contact material Gold Plated Brass
Contact rating 0.4A 20AC/DC
Current rating 0.4A
Electrical life 30,000 Cycles
Illuminated No
Mounting style PCB
Number of poles 1
Number of positions 3
Operating temperature -30°C to +85°C
Pitch 2.54mm
Product series TL
Switch operation On-Off-On
Terminal type Through Hole
Voltage rating 20VAC/DC
