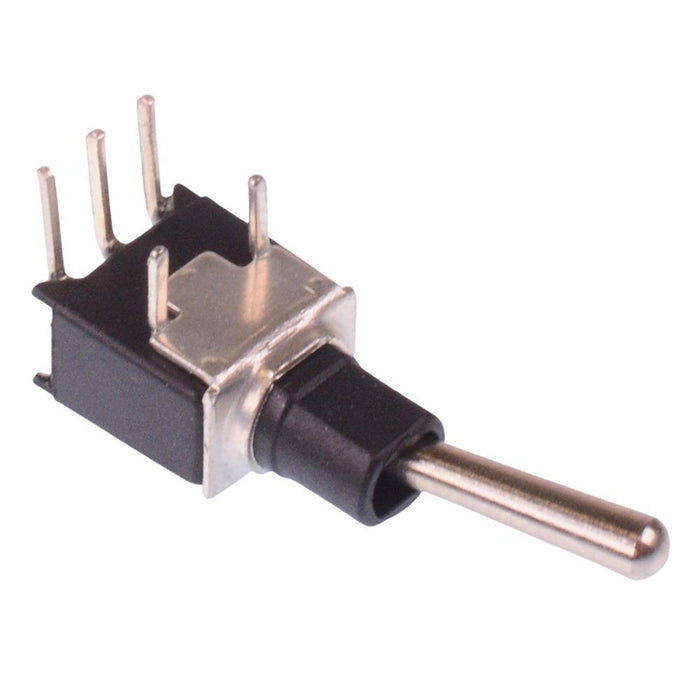

TL36W015200 APEM On-On Subminiature Washable PCB Toggle Switch SPDT

by APEM
SKU 488238

MPN: TL36W015200

Availability:
23 in stock
Original price £2.81 - Original price £2.81
Original price
£2.81 Inc VAT
£2.81 - £2.81
Current price £2.81 Inc VAT
The TL36W015200 is a sub-miniature toggle switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

  • On-On operation
  • SPDT contacts
  • Right angle PCB terminals
  • Horizontal PCB mounting
  • Long lever
  • Silver plated brass terminals
  • 2.54mm pitch
  • Rating: 0.5A 48VAC/DC
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Silver Plated Brass
    Contact rating 0.5A 48VAC/DC
    Current rating 0.5A
    Electrical life 20,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -30°C to +85°C
    Pitch 2.54mm
    Product series TL
    Switch operation On-On
    Terminal type Through Hole
    Voltage rating 48VAC/DC
