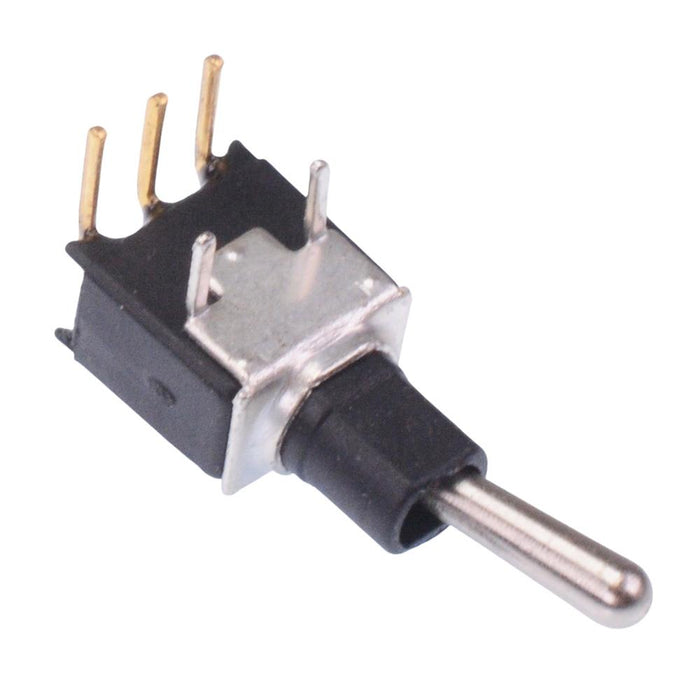

TL36W005400 APEM On-On Subminiature Washable PCB Toggle Switch SPDT

by APEM
SKU 487725

MPN: TL36W005400

Availability:
74 in stock
Original price £2.92 - Original price £2.92
Original price
£2.92 Inc VAT
£2.92 - £2.92
Current price £2.92 Inc VAT
The TL36W005400 is a sub-miniature toggle switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.

  • On-On operation
  • SPDT contacts
  • Right angle PCB terminals
  • Horizontal PCB mounting
  • Medium lever
  • Gold plated brass terminals
  • 2.54mm pitch
  • Rating: 0.4A 20VAC/DC
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20AC/DC
    Current rating 0.4A
    Electrical life 60,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -30°C to +85°C
    Pitch 2.54mm
    Product series TL
    Switch operation On-On
    Terminal type Through Hole
    Voltage rating 20VAC/DC
