TL36W005000 APEM On-On Sub-Miniature Right Angle Horizontal PCB Toggle Switch SPDT

by APEM
SKU 486200

MPN: TL36W005000

Availability:
50 in stock
Original price £4.31 - Original price £4.31
Original price
£4.31 Inc VAT
£4.31 - £4.31
Current price £4.31 Inc VAT

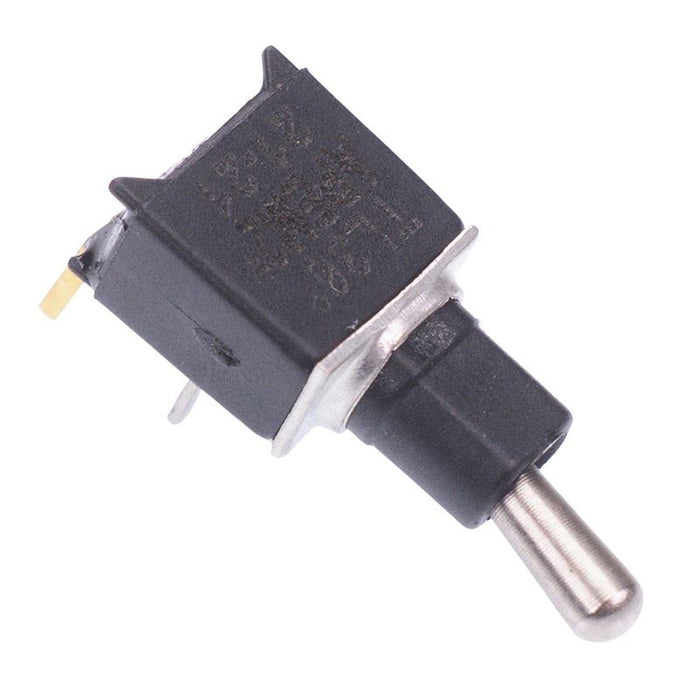

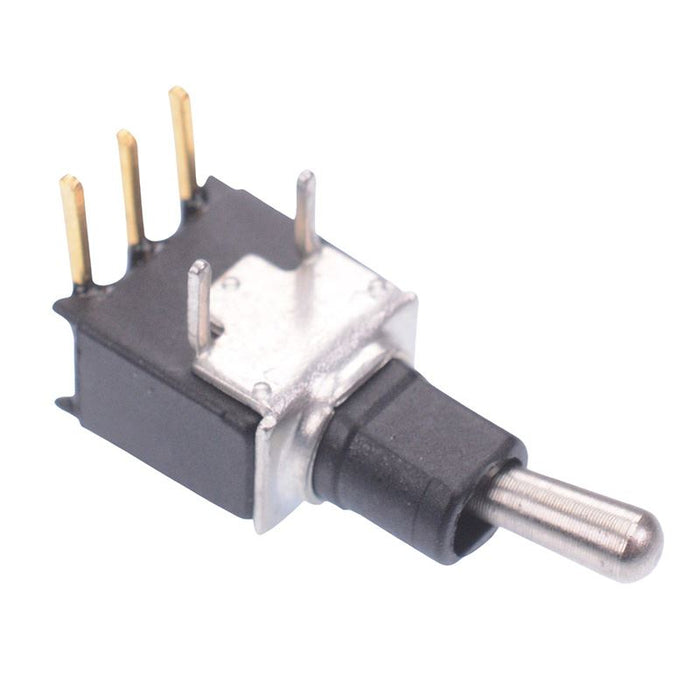

The TL36W005000 is a sub-miniature toggle switch manufactured by APEM featuring SPDT contacts, designed for right angle horizontal PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications.

  • On-On operation
  • SPDT contacts
  • Horizontal right angle PCB mounting
  • Gold plated brass terminals
  • 2.54mm pitch
  • Rating: 0.4A 20V
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Electrical life 60,000 Cycles
    Illuminated No
    Material PBT
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -30°C to 85°C
    Pitch 2.54mm
    Product series TL
    Switch operation On-On
    Terminal type Solder
    Voltage rating 20VAC/DC
