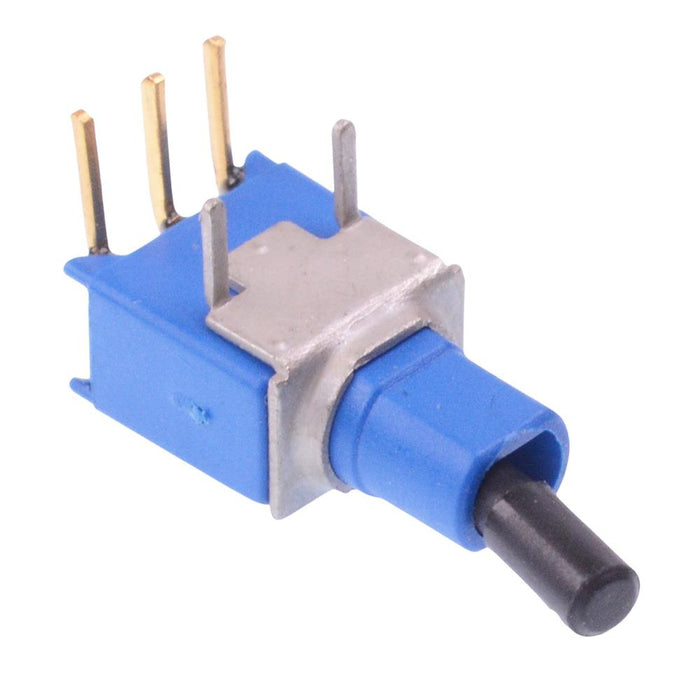

TL36W004000 APEM On-On Subminiature Washable PCB Toggle Switch SPDT
by APEM
SKU 487708
MPN: TL36W004000
Availability:
300 in stock
Original price
£2.53
-
Original price
£2.53
Original price
£2.53
Inc VAT
£2.53
-
£2.53
Current price
£2.53
Inc VAT
The TL36W004000 is a sub-miniature toggle switch manufactured by APEM featuring SPDT contacts, designed for PCB mounting. The toggle switch features a single piece sealed case making them suitable for a wide range of applications including telecommunications.
On-On operation SPDT contacts Right angle PCB terminals Horizontal PCB mounting Short insulated lever Gold plated brass terminals 2.54mm pitch Rating: 0.4A 20VAC/DC
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4A 20AC/DC |
| Current rating | 0.4A |
| Electrical life | 60,000 Cycles |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -30°C to +85°C |
| Pitch | 2.54mm |
| Product series | TL |
| Switch operation | On-On |
| Terminal type | Through Hole |
| Voltage rating | 20VAC/DC |
