TJG-325RV/TR Diptronics 3.7x6mm Thin Tactile Switch 50mA 12VDC
by Diptronics
SKU 487536
MPN: TJG-325RV/TR
Availability:
2774 in stock
Original price
£0.15
-
Original price
£0.15
Original price
£0.15
Inc VAT
£0.15
-
£0.15
Current price
£0.15
Inc VAT

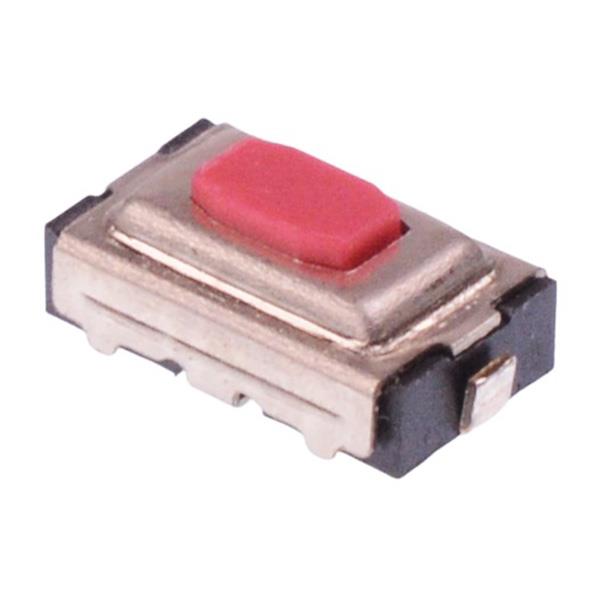

The TJG-325RV/TR is a PCB tactile switch featuring 2.5mm height and anti-ESD ground terminal, suitable for high density PCB mounting.
Height: 2.5mm Dimensions: 3.7 x 6mm (width x length) 0.4mm height button Rating: 50mA 12VDC Operating force: 260gf With ground pin
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact rating | 50mA 12VDC |
| Current rating | 50mA |
| Electrical life | 20,000 Cycles |
| Height | 2.5mm |
| Moq | 5 |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 260gf |
| Operating temperature | -25°C to +70°C |
| Product series | TJG |
| Switch operation | Off-(On) |
| Terminal type | Surface Mount |
| Voltage rating | 12VDC |
