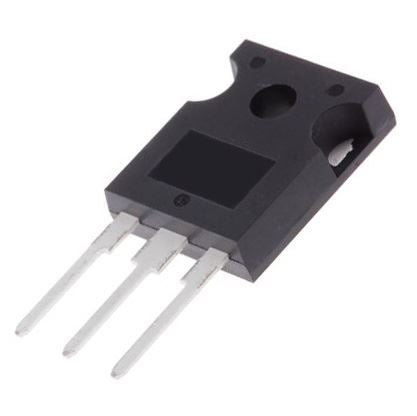

TIP36C ST PNP Transistor 100V TO-247

by ST
SKU 551579


137 in stock
Original price £2.09 - Original price £2.09
Original price
£2.09 Inc VAT
£2.09 - £2.09
Current price £2.09 Inc VAT

The TIP36C PNP transistor is manufactured in planar technology with base island layout. The resulting transistors show exceptional high gain performance coupled with very low saturation voltage. The transistor is supplied in TO-247 packaging. For further technical specifications please refer to the attached datasheet.

  • Low collector-emitter saturation voltage
  • Complementary NPN - PNP transistors
  • Suitable for general purpose and audio amplifier
  • 125W 25A 100V TO247
Back order lead time 5 Days
Collector base voltage 100V
Collector current 25A
Collector emitter saturation voltage 4V
Collector emitter voltage 100V
Dc current gain 10
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO247
Power dissipation 125W
Transistion frequency 3 MHz
Type PNP
