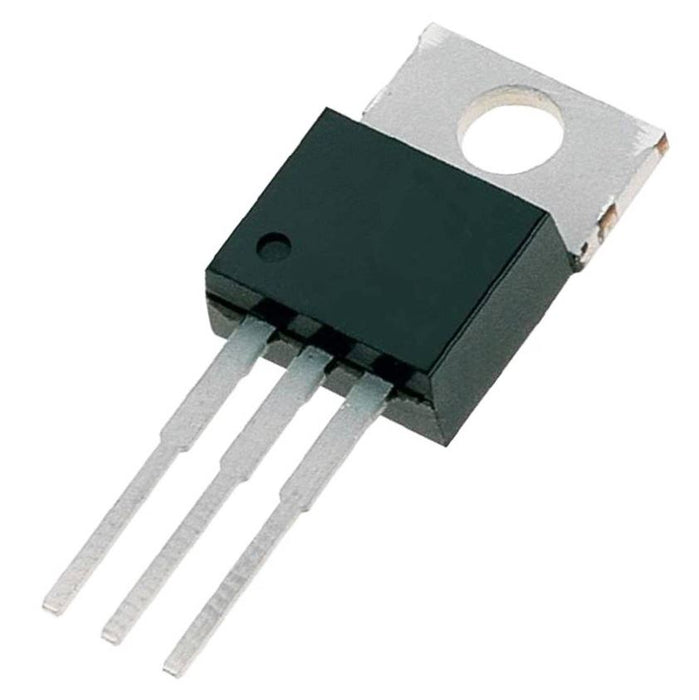

TIP32C ST PNP Power Transistor 100V TO-220

by ST
SKU 551565

MPN: TIP32C

Availability:
47 in stock
Original price £0.62 - Original price £0.62
Original price
£0.62 Inc VAT
£0.62 - £0.62
Current price £0.62 Inc VAT

The TIP32C transistor is a silicon epitaxial-base PNP power transistor in TO-220 packaging. it is intended for use in medium power linear and switching applications. For further technical specifications please refer to the attached datasheet.

  • PNP transistor type
  • Suitable for switching and general purpose amplifier applications
  • 40W 3A 100V TO220
Specification
Back order lead time 5 Days
Collector base voltage 100V
Collector current 3A
Collector emitter saturation voltage 1.2V
Collector emitter voltage 100V
Dc current gain 10
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO220AB
Power dissipation 2W
Type PNP
