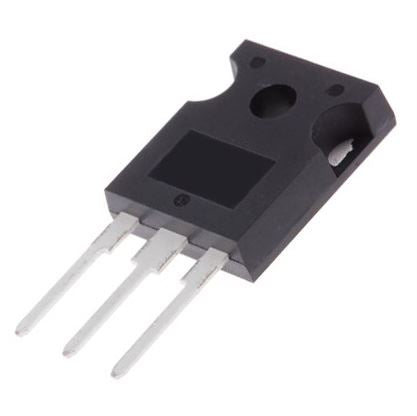

TIP147 ST PNP DARL Transistor 100V TO-247

by ST
SKU 551576

MPN: TIP147

Availability:
136 in stock
Original price £2.29 - Original price £2.29
Original price
£2.29 Inc VAT
£2.29 - £2.29
Current price £2.29 Inc VAT

The TIP147 transistor is manufactured in planar technology with base island layout and monolithic darlington configuration. This resutls in a transistor with exceptional high gain performance coupled with very low saturation voltage. For further technical specifications please refer to the attached datasheet.

  • Monolithic Darlington configuration
  • Integrated antiparallel collector-emitter diode
  • Suitable for linear and switching industrial equipment
  • 125W 10A 100V TO247 DARL
Specification
Back order lead time 5 Days
Collector base voltage 100V
Collector current 10A
Collector emitter saturation voltage 3V
Collector emitter voltage 100V
Dc current gain 100
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO247
Power dissipation 125W
Type PNP
