Techna PtecMushT60 60mm Emergency Stop Button Switch Plastic 10A 2NC
by Techna
SKU 935388
MPN: PtecMushT60-2NC
Availability:
Only 5 left!
Original price
£14.54
-
Original price
£14.54
Original price
£14.54
£14.54
-
£14.54
Current price
£14.54

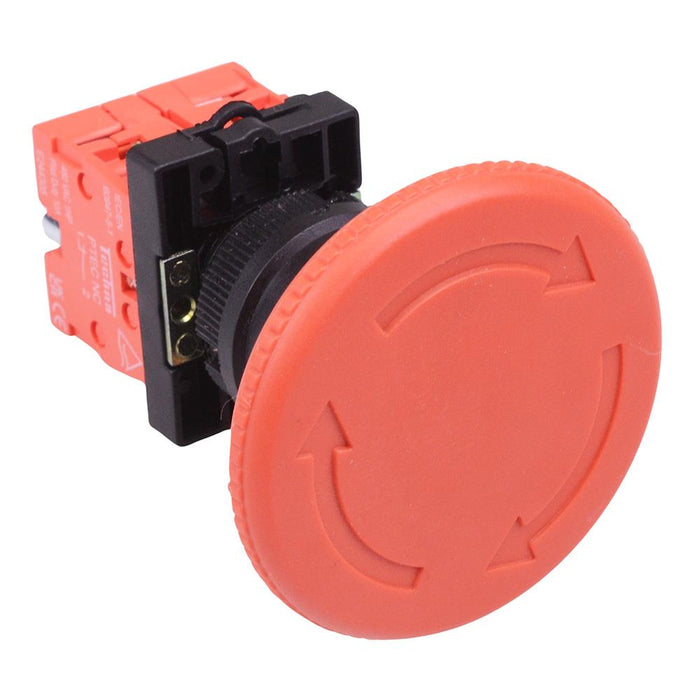

High quality 60mm emergency stop button actuator manufactured by Techna, featuring 2NC contacts and a 'turn to release' actuator suitable for industrial applications.
Button diameter: 60mm Plastic construction Supplied with mounting block Fits panel thickness 1-6mm 22.5mm diameter UL and CSA approved Rated insulation voltage: 500V Rated thermal current: 10A 2NC contacts
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 5 Days |
| Colour | Red |
| Contact Configuration | 2NC |
| Contact Rating | 10A 500V |
| Current Rating | 10A |
| Head Type | Mushroom |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +70°C |
| Panel Cut Out | 22.5mm |
| Product Series | Ptec |
| Terminal Type | Screw |
| Voltage Rating | 500V |
