Techna PtecMushK40 Key Release 40mm Emergency Stop Button Switch Plastic 10A 1NO-1NC

by Techna
SKU 935392

MPN: PtecMushK40-1NO-1NC

Availability:
10 in stock
Original price £19.12 - Original price £19.12
Original price
£19.12 Inc VAT
£19.12 - £19.12
Current price £19.12 Inc VAT

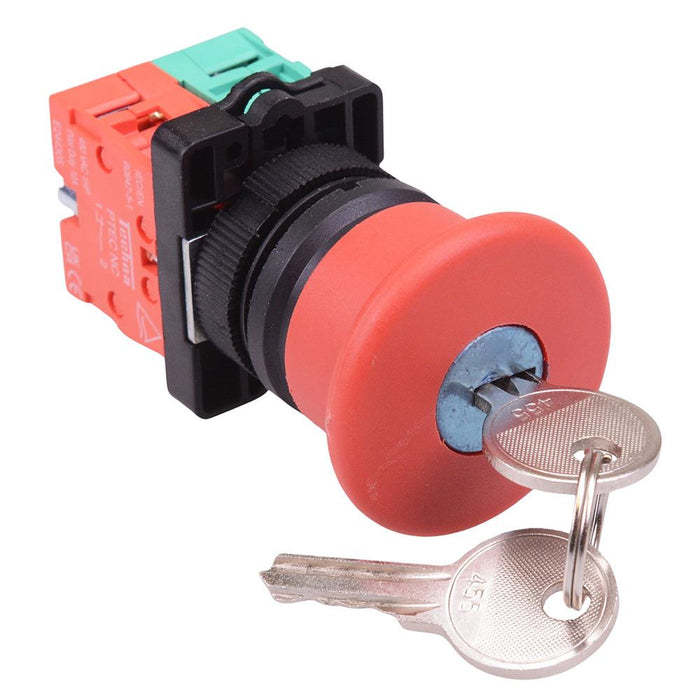

40mm emergency stop button key release switch manufactured by Techna featuring 1NO and 1NC contacts and a 'turn to release' actuator suitable for industrial applications. The switch features a plastic housing and is suitable for industry standard 22.5mm mounting.

  • Button diameter: 40mm
  • Plastic construction
  • Supplied with mounting block
  • Fits panel thickness 1-6mm
  • 22.5mm diameter
  • UL and CSA approved
  • Rated insulation voltage: 500V
  • Rated thermal current: 10A
  • 1NO and 1NC contacts
  • Specification
    Actuation Key Release
    Back order lead time 5 Days
    Colour Red
    Contact configuration 1NO-1NC
    Contact rating 10A 500V
    Current rating 10A
    Head type Mushroom
    Illuminated No
    Mounting style Panel
    Number of positions 2
    Operating temperature -25°C to +70°C
    Panel cut out 22.5mm
    Product series Ptec
    Terminal type Screw
    Voltage rating 500V
