TDS08V Diptronics 8 Way Tri-State DIP Switch 2.54mm

SKU 488065

MPN: TDS08V

Availability:
125 in stock
Original price £0.79 - Original price £0.79
Original price
£0.79 Inc VAT
£0.79 - £0.79
Current price £0.79 Inc VAT

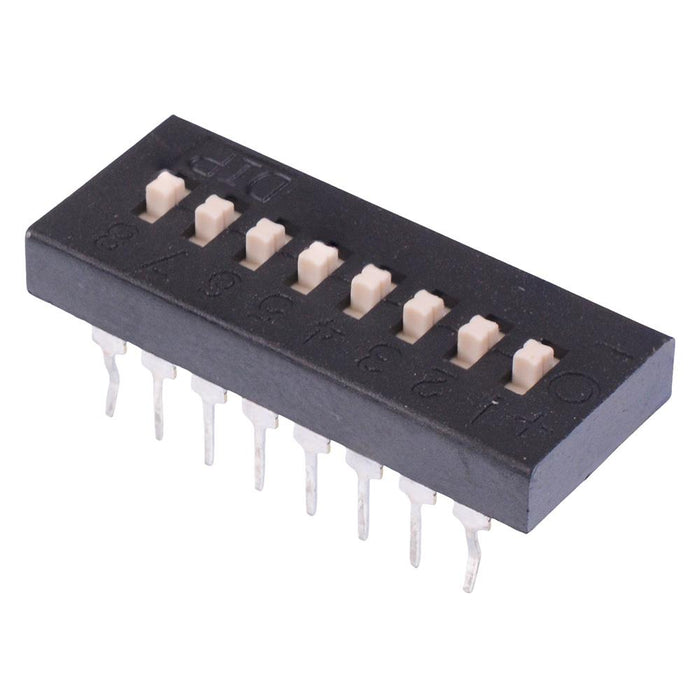

The TDS08V is a 8 positon dip switch by Diptronics, featuring SPST contacts and raised actuator. The switch features 3 state setting and through hole terminals designed for PCB mounting.

  • 8 positions
  • Tri-state
  • SPST contacts
  • Through hole mounting
  • Rating: 25mA 24VDC
  • 2.54mm pitch
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Colour Black
    Contact configuration SPST
    Contact rating 25mA 24VDC
    Current rating 25mA
    Electrical life 2,000 Cycles
    Mounting style Through Hole
    Number of positions 2
    Number of ways 8
    Operating temperature -20°C to +70°C
    Pitch 2.54mm
    Product series TDS
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 24VDC
