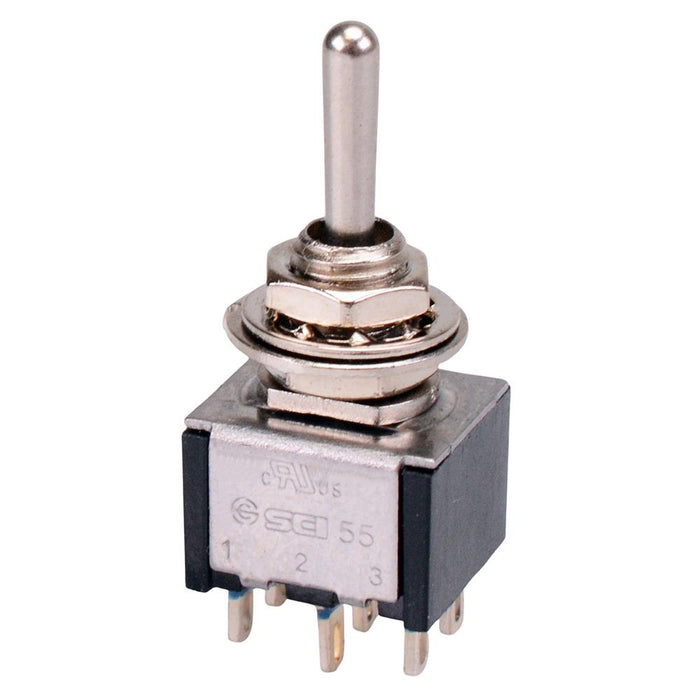

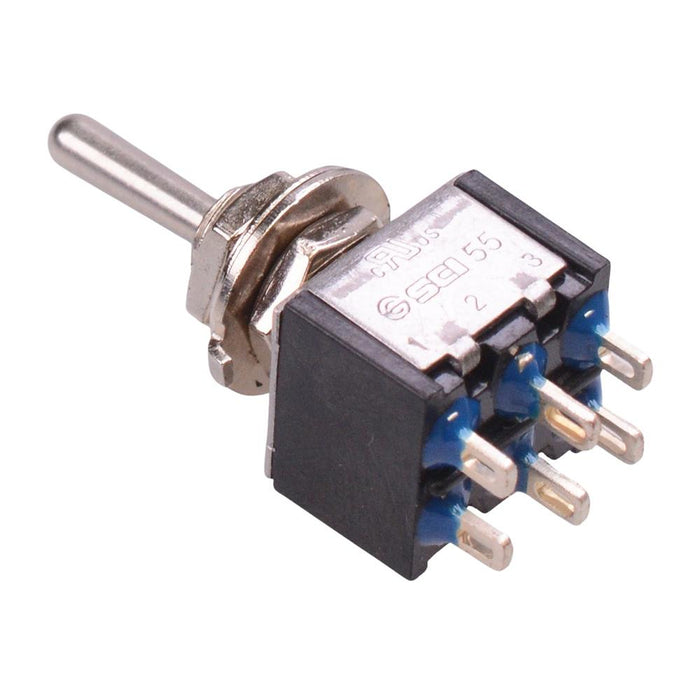

TA203A1 On-Off-On Miniature Toggle Switch DPDT 3A

by SCI
SKU 482610

MPN: TA203A1

191 in stock
Original price £2.22 - Original price £2.22
Original price
£2.22 Inc VAT
£2.22 - £2.22
Current price £2.22 Inc VAT
TA203A1 high quality miniature size centre off toggle switch featuring DPDT contacts suitable for low power applications requiring a reliable cost effective switch.

  • On-Off-On action
  • DPDT contacts
  • 6.2mm panel cut-out
  • Solder contacts
  • Maximum current: 3A
  • Maximum voltage: 250VAC
  • Epoxy sealed for dust and moisture resistance
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Contact configuration DPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 3
    Operating temperature -20°C to +65°C
    Panel cut out 6.2mm
    Switch operation On-Off-On
    Terminal type Solder
    Voltage rating 250VAC
    Request a quote
