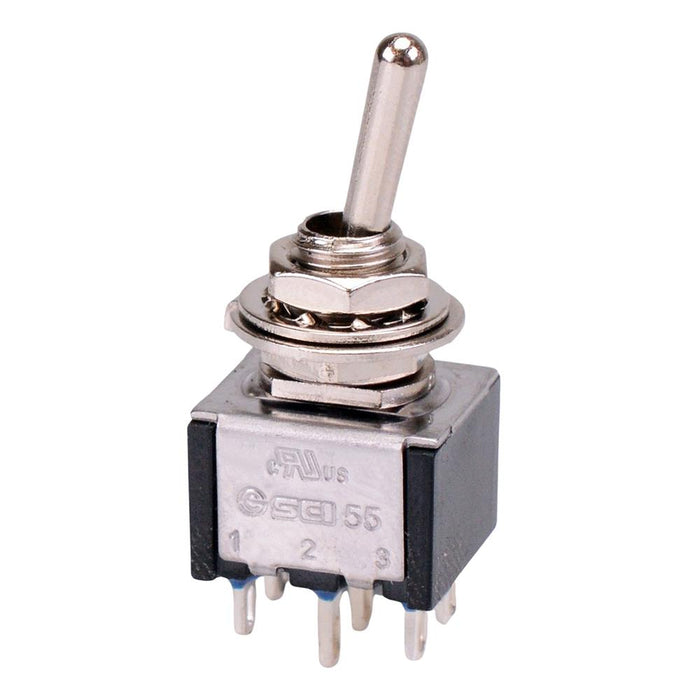

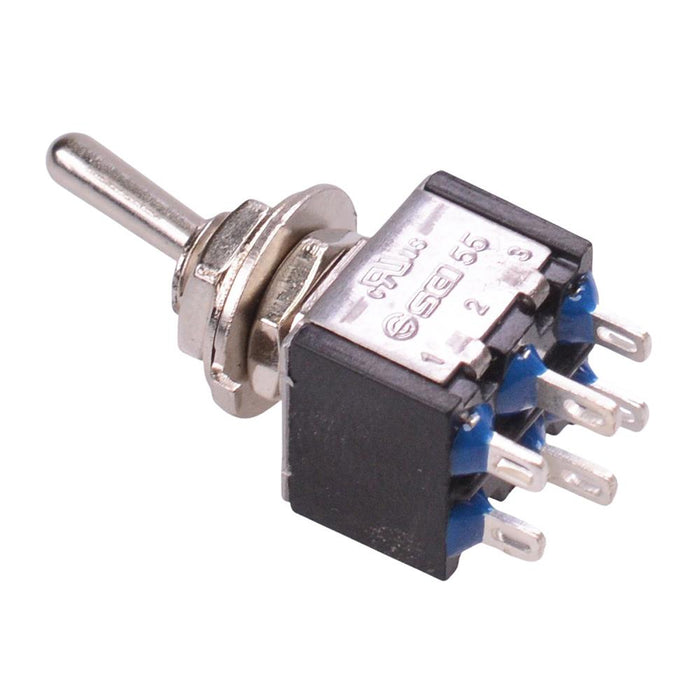

TA202A1 On-On Miniature Toggle Switch DPDT 3A
by SCI
SKU 482609
MPN: TA202A1
Availability:
500 in stock
Original price
£1.97
-
Original price
£1.97
Original price
£1.97
Inc VAT
£1.97
-
£1.97
Current price
£1.97
Inc VAT
TA202A1 high quality miniature size centre off toggle switch featuring DPDT contacts suitable for low power applications requiring a reliable cost effective switch.
On-On action DPDT contacts 6.2mm panel cut-out Solder contacts Maximum current: 3A Maximum voltage: 250VAC Epoxy sealed for dust and moisture resistance
Specification
| Actuation | Latching |
| Back order lead time | 120 Days |
| Contact configuration | DPDT |
| Contact rating | 3A 250VAC |
| Current rating | 3A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -20°C to +65°C |
| Panel cut out | 6.2mm |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 250VAC |
