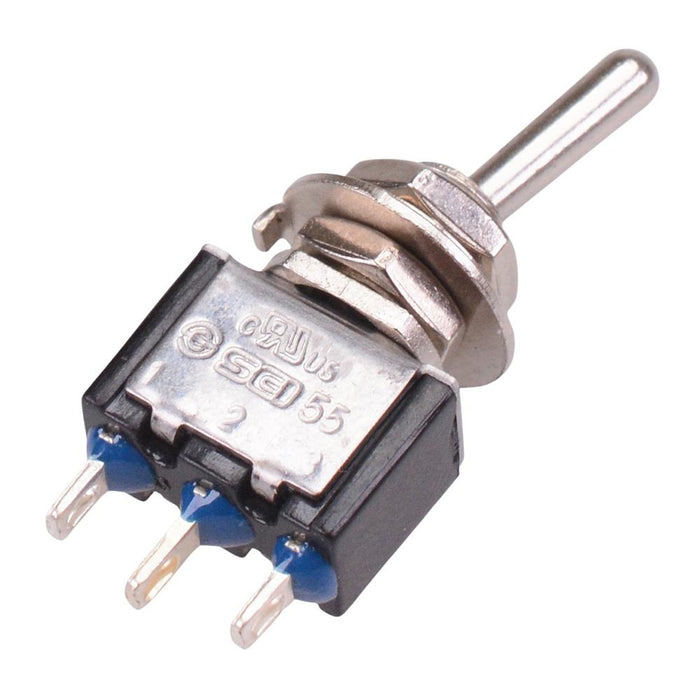

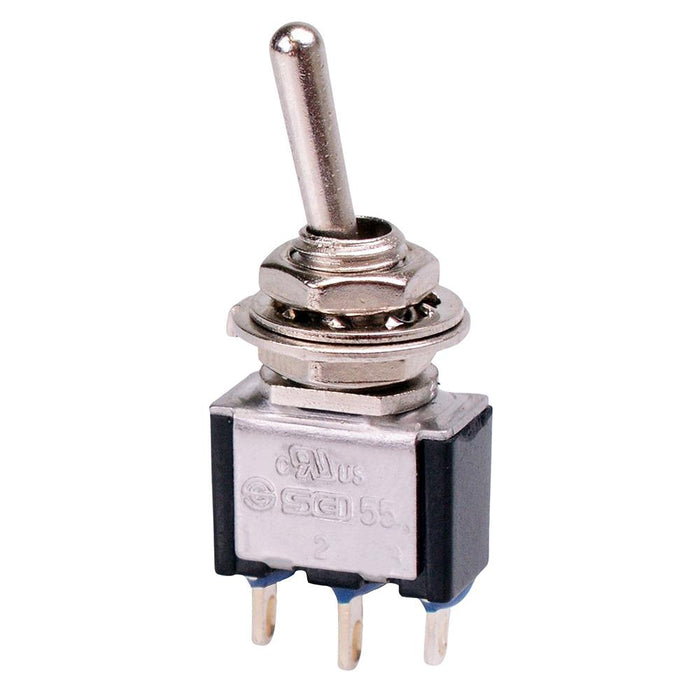

TA106A1 On-(On) Momentary Miniature Toggle Switch SPDT 6A
by SCI
SKU 481946
MPN: TA106A1
Availability:
708 in stock
Original price
£1.48
-
Original price
£1.48
Original price
£1.48
£1.48
£1.48
-
£1.48
Current price
£1.48
The TA106A1 is a miniature size toggle switch with On-(On) momentary function and SPDT contacts. The switch requires a 6.2mm panel cut-out and is rated up to 6A, suitable for low power switching applications.
On-(On) momentary action SPDT contacts 6.2mm panel cut-out M6*0.75 thread Solder contacts Rating: 3A 250VAC, 6A 125VAC Epoxy sealed for dust and moisture resistance
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +65°C |
| Panel Cut Out | 6.2mm |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
