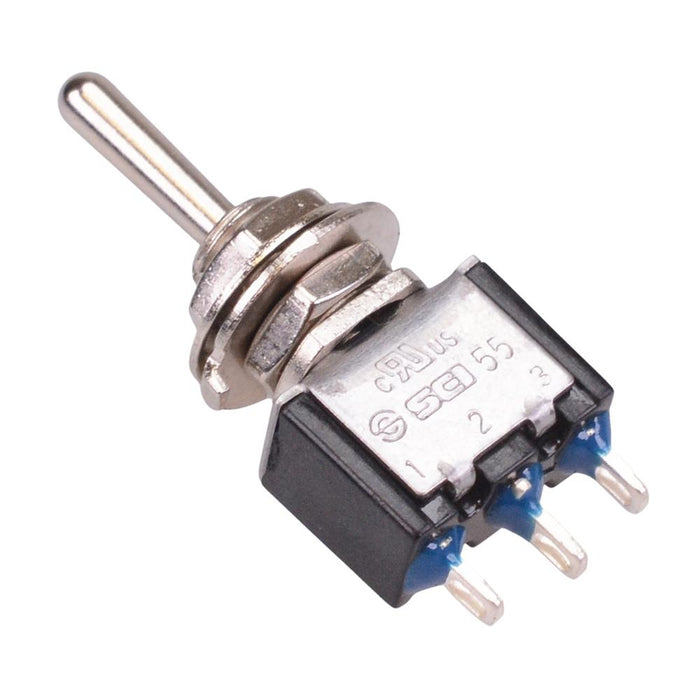

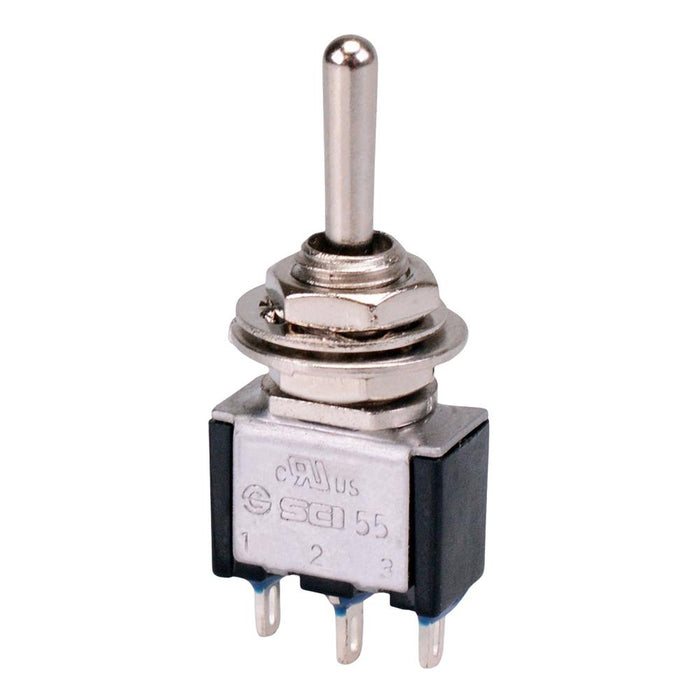

TA105A1 On-Off-(On) Miniature Toggle Switch SPDT 3A

by SCI
SKU 481947

MPN: TA105A1

814 in stock
Original price £1.47 - Original price £1.47
Original price
£1.47 Inc VAT
£1.47 - £1.47
Current price £1.47 Inc VAT
TA105A1 high quality miniature size On-Off-(On) momentary toggle switch featuring SPDT contacts suitable for low power applications requiring a reliable cost effective switch.

  • On-Off-(On) momentary action
  • SPDT contacts
  • 6.2mm panel cut-out
  • Solder contacts
  • Maximum current: 3A
  • Maximum voltage: 250VAC
  • Epoxy sealed for dust and moisture resistance
  • Specification
    Actuation Latching / Momentary
    Back order lead time 120 Days
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 3
    Operating temperature -20°C to +65°C
    Panel cut out 6.2mm
    Switch operation On-Off-(On)
    Terminal type Solder
    Voltage rating 250VAC
