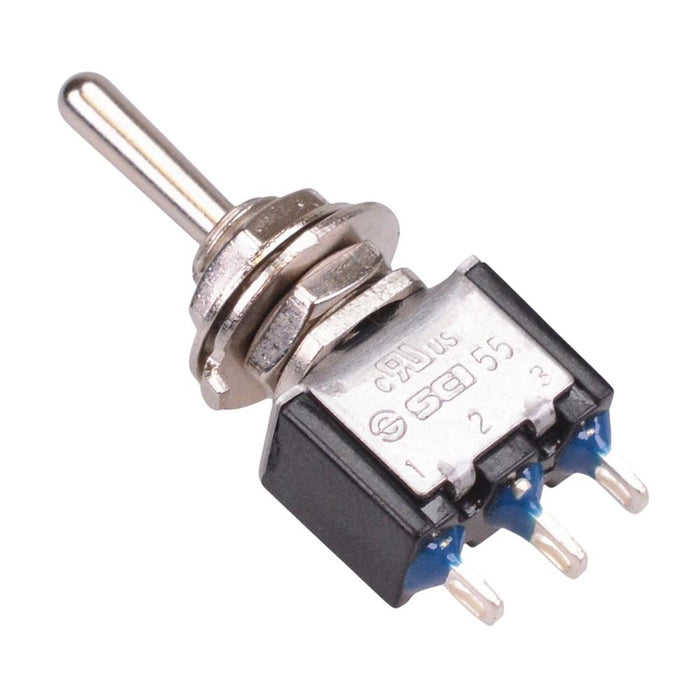

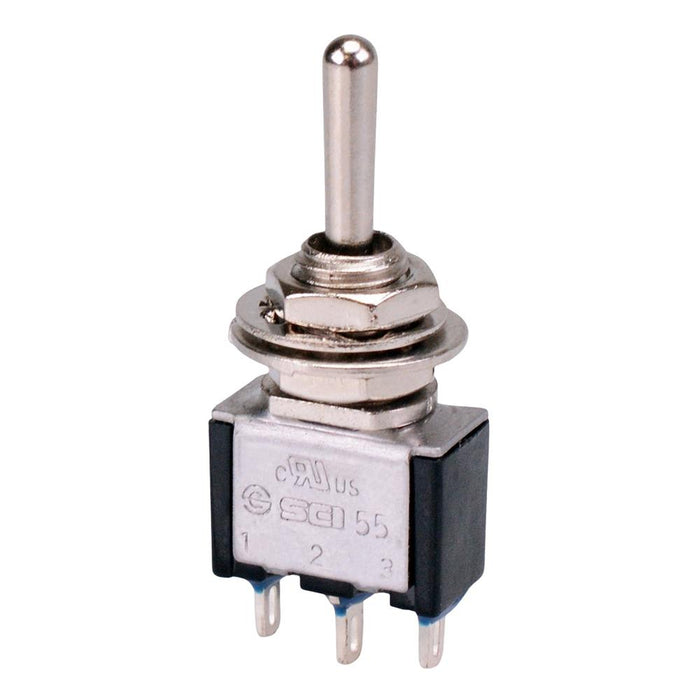

TA104A1 (On)-Off-(On) Momentary Miniature Toggle Switch SPDT 3A
by SCI
SKU 485155
MPN: TA104A1
Availability:
854 in stock
Original price
£1.67
-
Original price
£1.67
Original price
£1.67
£1.67
-
£1.67
Current price
£1.67
TA104A1 high quality miniature size (On)-Off-(On) momentary toggle switch featuring SPDT contacts suitable for low power applications requiring a reliable cost effective switch.
(On)-Off-(On) momentary action SPDT contacts 6.2mm panel cut-out Solder contacts Maximum current: 3A Maximum voltage: 250VAC Epoxy sealed for dust and moisture resistance
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -20°C to +65°C |
| Panel Cut Out | 6.2mm |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
