TA103A1 On-Off-On Miniature Toggle Switch SPDT 3A

by SCI
SKU 481945

MPN: TA103A1

Availability:
233 in stock
Original price £1.47 - Original price £1.47
Original price
£1.47 Inc VAT
£1.47 - £1.47
Current price £1.47 Inc VAT

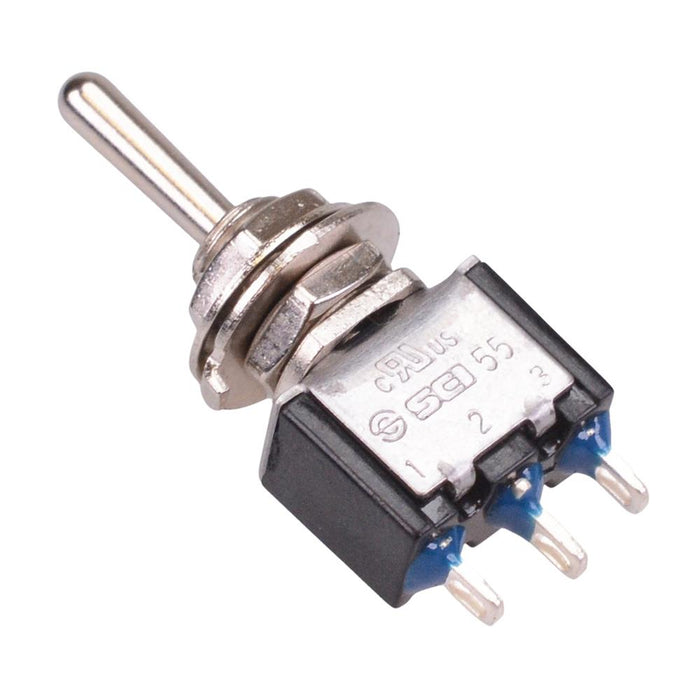

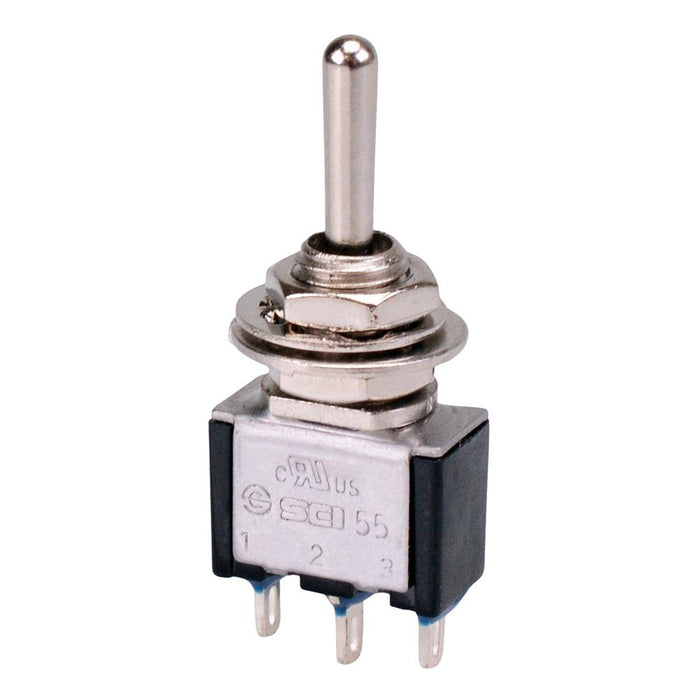

TA103A1 high quality miniature size centre off toggle switch featuring SPDT contacts suitable for low power applications requiring a reliable cost effective switch.

  • On-Off-On action
  • SPDT contacts
  • 6.2mm panel cut-out
  • Solder contacts
  • Maximum current: 3A
  • Maximum voltage: 250VAC
  • Epoxy sealed for dust and moisture resistance
  • Specification
    Actuation Latching
    Back order lead time 120 Days
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 3
    Operating temperature -20°C to +65°C
    Panel cut out 6.2mm
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
