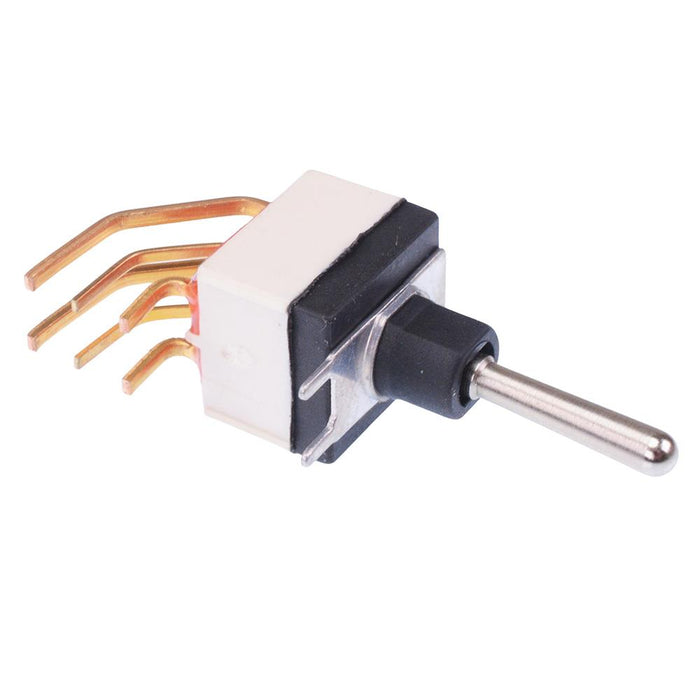

SWW244THCD-13 APEM On-On-On Washable PCB Miniature Toggle Switch DPDT 0.4A 20V

by APEM
SKU 487797

MPN: SWW244THCD13

Availability:
68 in stock
Original price £3.90 - Original price £3.90
Original price
£3.90 Inc VAT
£3.90 - £3.90
Current price £3.90 Inc VAT
The SWW244THCD-13 is a washable miniature toggle switch manufactured by APEM. Featuring DPDT contacts and front/rear sealing, suitable for PCB mounting applications.

  • Long lever
  • DPDT contacts
  • On-On-On function
  • Right angle terminals
  • Vertical mounting
  • Gold plated brass terminals
  • Washable
  • Compatible with wave soldering
  • Rating: 0.4A 20VAC/DC
  • Terminal pitch: 4.7mm
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 2
    Number of positions 3
    Operating temperature -20°C to +85°C
    Pitch 4.7mm
    Product series S
    Switch operation On-On-On
    Terminal type Through Hole
    Voltage rating 20VAC/DC
