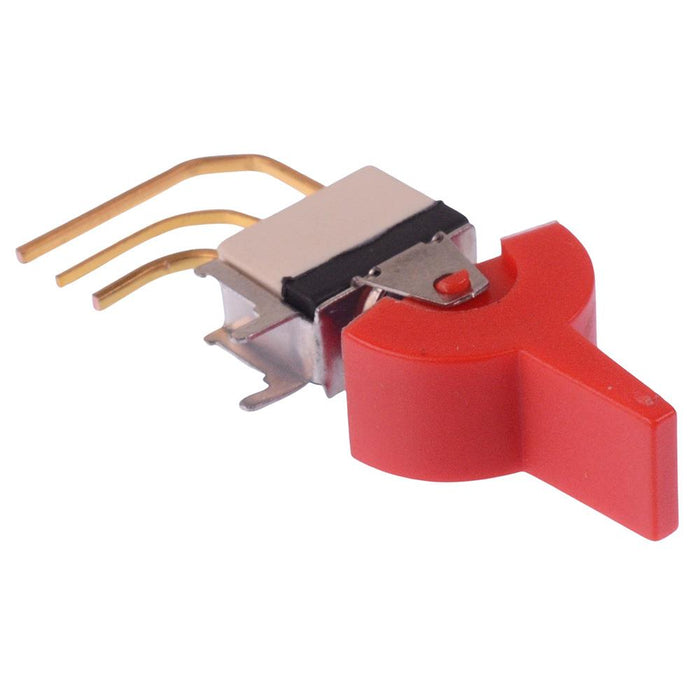

SWW237CD6X653 APEM Red Paddle (On)-Off-(On) Momentary Washable PCB Miniature Toggle Switch SPDT 0.4A 20V

by APEM
SKU 487856

MPN: SWW237CD6X653

Availability:
63 in stock
Original price £3.56 - Original price £3.56
Original price
£3.56 Inc VAT
£3.56 - £3.56
Current price £3.56 Inc VAT
The SWW237CD6X653 is a washable momentary miniature toggle switch manufactured by APEM. Featuring SPDT contacts and front/rear sealing, suitable for PCB mounting applications.

  • Red paddle
  • SPDT contacts
  • (On)-Off-(On) momentary function
  • Right angle terminals
  • Vertical mounting
  • Gold plated brass terminals
  • Washable
  • Compatible with wave soldering
  • Rating: 0.4A 20VAC/DC
  • Terminal pitch: 4.7mm
  • Specification
    Actuation Momentary
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 3
    Operating temperature -20°C to +85°C
    Pitch 4.7mm
    Product series S
    Switch operation (On)-Off-(On)
    Terminal type Through Hole
    Voltage rating 20VAC/DC
