SWW236A-7UL APEM On-On Washable PCB Miniature Toggle Switch SPDT 0.4A 20V
by APEM
SKU 490157
MPN: SWW236A-7UL
Availability:
25 in stock
Original price
£8.96
-
Original price
£8.96
Original price
£8.96
Inc VAT
£8.96
-
£8.96
Current price
£8.96
Inc VAT

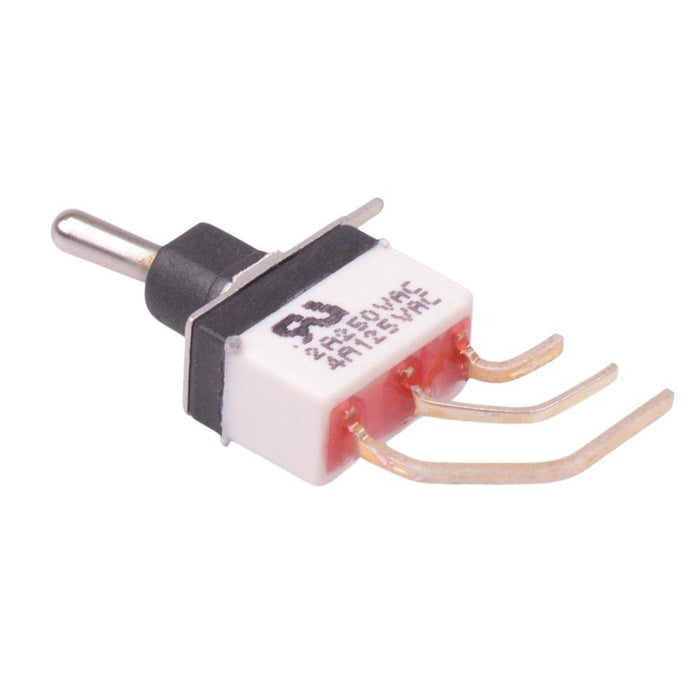

The SWW236A-7UL is a washable miniature toggle switch manufactured by APEM. Featuring SPDT contacts and front/rear sealing, suitable for PCB mounting applications.
Short lever SPDT contacts On-On function Right angle terminals Vertical mounting Silver terminals Washable Compatible with wave soldering Rating: 4A 30VDC Terminal pitch: 4.7mm
Specification
| Actuation | Latching |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 40,000 Cycles |
| Illuminated | No |
| Moq | 1 |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Product series | S |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 30VDC |
