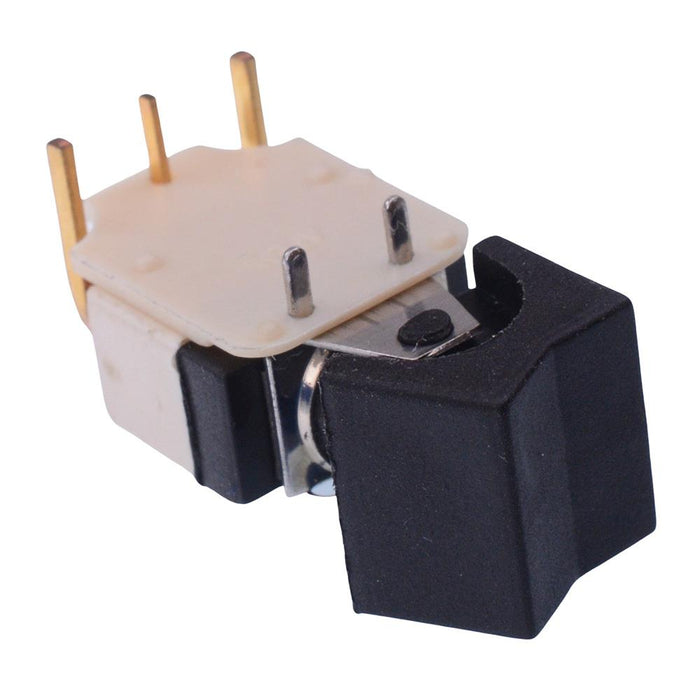

SW236CD-6 APEM Black On-On Momentary Washable PCB Miniature Toggle Switch SPDT 0.4A 20V

by APEM
SKU 488062

MPN: SW236CD-6+U732

Availability:
42 in stock
Original price £3.47 - Original price £3.47
Original price
£3.47 Inc VAT
£3.47 - £3.47
Current price £3.47 Inc VAT
The SW236CD-6 is a washable miniature toggle switch manufactured by APEM. Featuring SPDT contacts and front/rear sealing, suitable for PCB mounting applications.

  • Black U732 actuator
  • SPDT contacts
  • On-On function
  • Right angle terminals
  • Horizontal mounting
  • Gold plated brass terminals
  • Washable
  • Compatible with wave soldering
  • Rating: 0.4A 20VAC/DC
  • Terminal pitch: 4.7mm
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Electrical life 100,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 1
    Number of positions 2
    Operating temperature -20°C to +85°C
    Pitch 4.7mm
    Product series S
    Switch operation On-On
    Terminal type Through Hole
    Voltage rating 20VAC/DC
