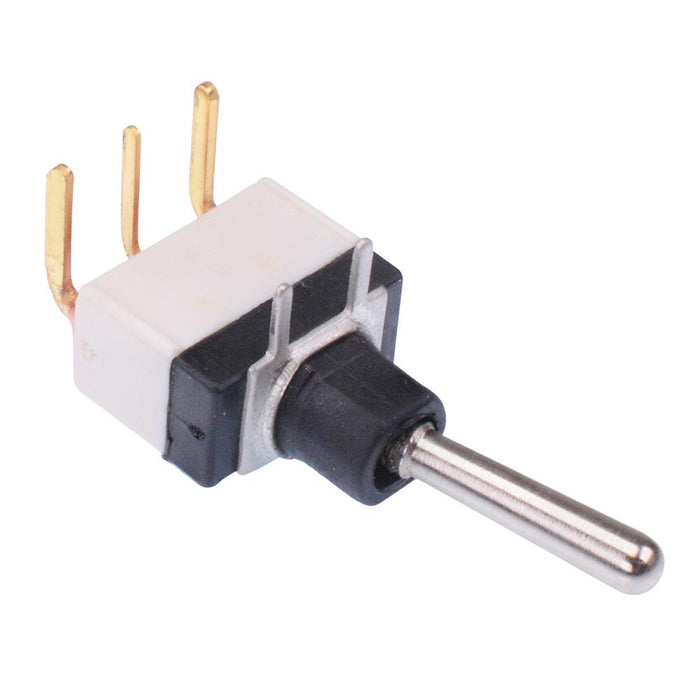

SW236CD-13 APEM On-On Washable PCB Miniature Toggle Switch SPDT 0.4A 20V
by APEM
SKU 487982
MPN: SW236CD13
Availability:
51 in stock
Original price
£3.52
-
Original price
£3.52
Original price
£3.52
Inc VAT
£3.52
-
£3.52
Current price
£3.52
Inc VAT
The SW236CD-13 is a washable miniature toggle switch manufactured by APEM. Featuring SPDT contacts and front/rear sealing, suitable for PCB mounting applications.
Long lever SPDT contacts On-On function Right angle terminals Horizontal mounting Gold plated brass terminals Washable Compatible with wave soldering Rating: 0.4A 20VAC/DC Terminal pitch: 4.7mm
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4A 20VAC/DC |
| Current rating | 0.4A |
| Electrical life | 100,000 Cycles |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -20°C to +85°C |
| Pitch | 4.7mm |
| Product series | S |
| Switch operation | On-On |
| Terminal type | Through Hole |
| Voltage rating | 20VAC/DC |
