Surface Mount Changeover Battery Isolator Switch W/AFD 350A 32VDC
SKU 489625
MPN: SF52241-9
Availability:
50 in stock
Original price
£20.52
-
Original price
£20.52
Original price
£20.52
Inc VAT
£20.52
-
£20.52
Current price
£20.52
Inc VAT

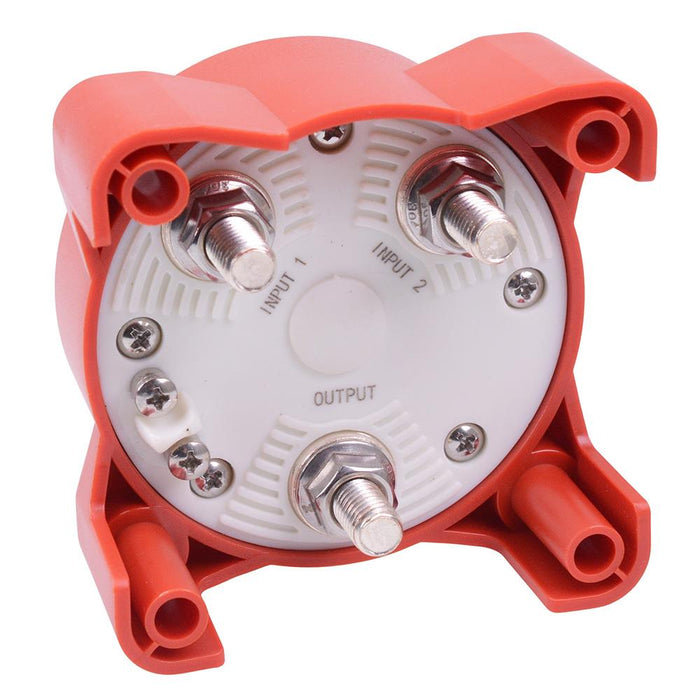

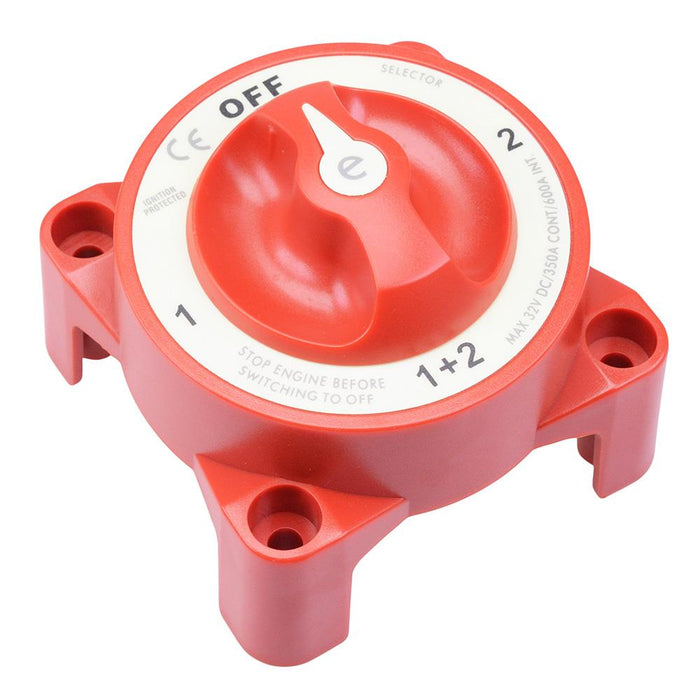

Heavy duty surface mount changeover battery isolator switch featuring a low profile design and ignition protection. The switch can be either surface or recess mounted and is suitable for automotive and marine applications with a continuous current up to 350A.
Function: 1, 2, 1&2, OFF Make before break switching Includes AFD (alternator field disconnect Continuous current: 350A @ 32VDC Crank current: 600A Voltage rating: 32VDC Stud size: 3*M10 Size: 97.5 x 97.5 x 80.3mm
Specification
| Back order lead time | 120 Days |
| Current rating | 350A |
| Moq | 1 |
| Mounting style | Surface Mount |
| Number of positions | 4 |
| Switch operation | Changeover |
| Terminal type | M10 Studs |
| Voltage rating | 32VDC |
