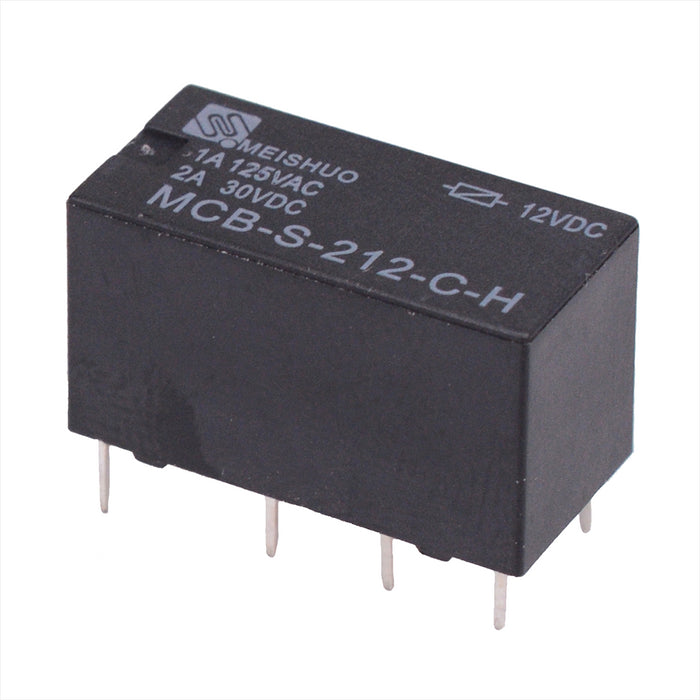

Subminiature PCB 12V Signal Relay DPDT

by Meishuo
SKU 309016

MPN: MCB-S-212-C-H

Availability:
738 in stock
Original price £1.26 - Original price £1.26
Original price
£1.26 Inc VAT
£1.26 - £1.26
Current price £1.26 Inc VAT
General purpose DPDT subminiature relay with a compact low profile design, suitable for low current PCB applications.

  • DPDT contacts
  • Coil voltage: 12VDC
  • Sealed IP67 construction
  • Contact rating: 2A 30VDC, 1A 125VAC
  • Coil power: 200mW
  • Dimensions: 20.2 x 10 x 11.5mm
  • Specification
    Ambient temperature -40°C to +85°C
    Back order lead time 120 Days
    Coil resistance 720Ω
    Coil voltage 12VDC
    Contact arrangement DPDT
    Maximum switching current 2A
    Maximum switching voltage 125VAC / 30VDC
    Mounting type PCB
    Number of contacts 8
    Power consumption 0.2W
    Terminal type Through Hole
