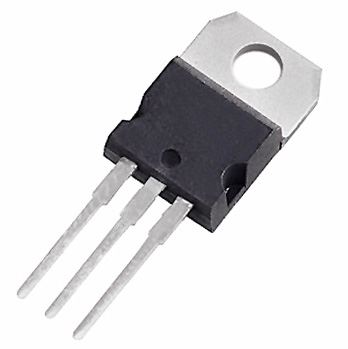

STP75NF75 MOSFET 75V 80A N Channel TO220

by ST
SKU 551645

MPN: STP75NF75

Availability:
85 in stock
Original price £2.52 - Original price £2.52
Original price
£2.52 Inc VAT
£2.52 - £2.52
Current price £2.52 Inc VAT

The STP75NF75 MOSFET Transistor is an N-Channel 75V transistor supplied in TO220 packaging. This power MOSFET is designed to minimise input capacitance and gate charge. It is suitable as primary switch in advanced high efficiency, high frequency isolated DC-DC convertors for Telecom and Computer applications. For further technical specifications please refer to the attached datasheet.

  • 75 Volt VDS
  • RDS(on) 11 mOhm
  • Gate Source Voltage 4V
  • N Channel 75V
  • Extremely high dv/dt capability
  • 100% avalanche tested/li>
  • MOSFET 75V 80A TO220
Specification
Back order lead time 5 Days
Continuous drain current 80A
Drain source on resistance 11MΩ
Drain source voltage 75V
Input capacitance 3700pF
Maximum gate source voltage 4V
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO220
Power dissipation 40W
Type N-Channel
