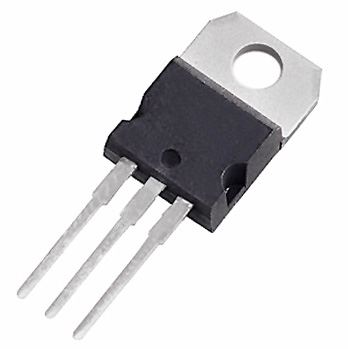

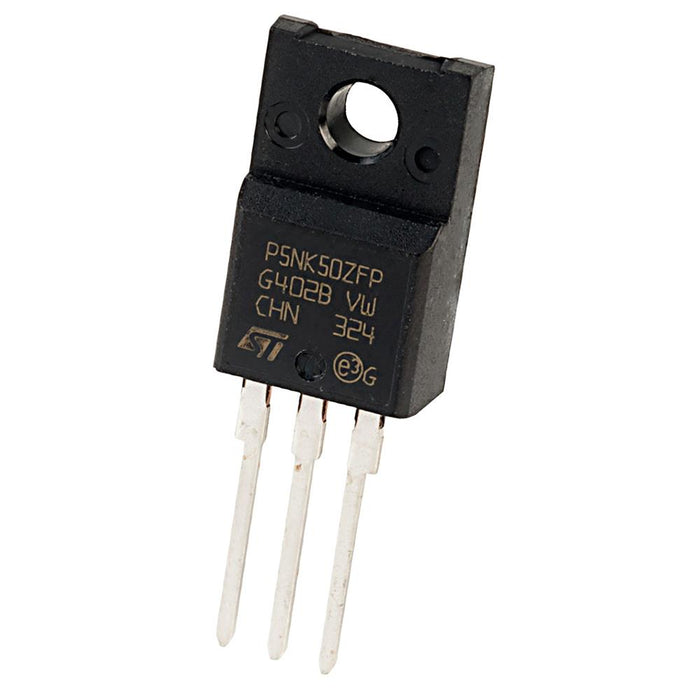

STP5NK50ZFP MOSFET 500V 4.4A N Channel TO220

by ST
SKU 551651

MPN: STP5NK50ZFP

Availability:
Only 4 left!
Original price £1.19 - Original price £1.19
Original price
£1.19 Inc VAT
£1.19 - £1.19
Current price £1.19 Inc VAT

The STP5NK50ZFP MOSFET Transistor is an N-Channel 500V transistor supplied in TO220 packaging. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. For further technical specifications please refer to the attached datasheet.

  • 500 Volt VDS
  • RDS(on) 1.5 Ohm
  • Gate Source Voltage 4.5V
  • N Channel 500V
  • Extremely high dv/dt capability
  • 100% avalanche tested/li>
  • Improved ESD capability
  • Gate charge minimised
  • Very low intrinsic capacitances
  • MOSFET 500V 4.4A TO220
Specification
Back order lead time 5 Days
Continuous drain current 4.4A
Drain source on resistance 1.5Ω
Drain source voltage 500V
Input capacitance 535pF
Maximum gate source voltage 4.5V
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO220
Power dissipation 3W
Type N-Channel
