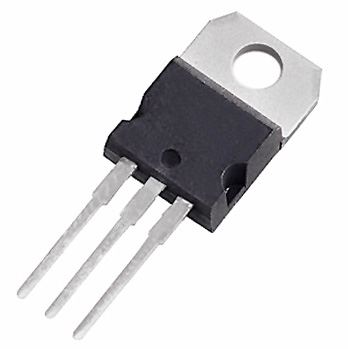

STP55NF06 MOSFET 60V 50A N Channel TO220

by ST
SKU 551646


Out of stock
Sold out
Original price £1.05 - Original price £1.05
Original price
£1.05 Inc VAT
£1.05 - £1.05
Current price £1.05 Inc VAT

The STP55NF06 MOSFET Transistor is an N-Channel 60V transistor supplied in TO220 packaging. This power MOSFET is designed to minimise input capacitance and gate charge. It is suitable as primary switch in advanced high efficiency, high frequency isolated DC-DC convertors for Telecom and Computer applications. For further technical specifications please refer to the attached datasheet.

  • 60 Volt VDS
  • RDS(on) 18 mOhm
  • Gate Source Voltage 4V
  • N Channel 60V
  • Extremely high dv/dt capability
  • 100% avalanche tested/li>
  • MOSFET 60V 50A TO220
Back order lead time 5 Days
Continuous drain current 50A
Drain source on resistance 18MΩ
Drain source voltage 60V
Input capacitance 1300pF
Maximum gate source voltage 4V
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO220
Power dissipation 160W
Type N-Channel
