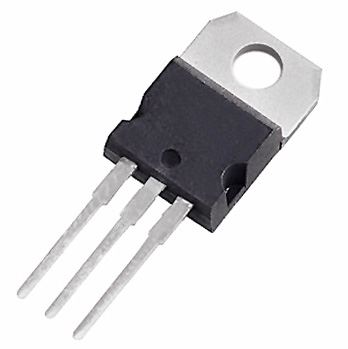

STP36NF06L MOSFET 60V 30A N Channel TO220

by ST
SKU 551643

MPN: STP36NF06L

Availability:
1943 in stock
Original price £0.46 - Original price £0.46
Original price
£0.46
£0.46 - £0.46
Current price £0.46

The STP36NF06L MOSFET Transistor is an N Channel 60V transistor supplied in TO220 packaging. This power MOSFET is the latest development of the strip based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characterstics and less critical alignment steps. The transistor is particularly suitable for switching applications. For further technical specifications please refer to the attached datasheet.

  • 60 Volt VDS
  • RDS(on) 40 mOhm
  • Gate Source Voltage 2.5V
  • N Channel 60V
  • Exceptional dv/dt capability
  • 100% avalanche tested
  • Low threshold drive
  • MOSFET 60V 30A TO220
Specification
Back Order Lead Time 5 Days
Continuous Drain Current 30A
Drain Source On Resistance 40MΩ
Drain Source Voltage 60V
Input Capacitance 660pF
Maximum Gate Source Voltage 2.5V
Maximum Operating Temperature 150°C
Mounting Type Through Hole
Package TO220
Power Dissipation 330W
Type N-Channel
