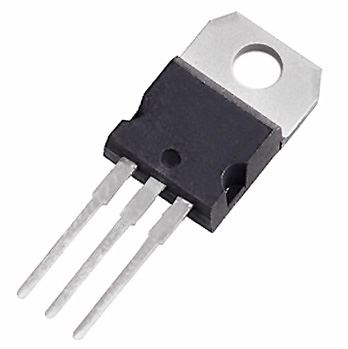

STP36NF06 MOSFET 60V 30A N Channel TO220
by ST
SKU 551641
MPN: STP36NF06
Availability:
Out of stock
Sold out
Original price
£1.58
-
Original price
£1.58
Original price
£1.58
Inc VAT
£1.58
-
£1.58
Current price
£1.58
Inc VAT
The STP36NF06 MOSFET Transistor is an N Channel 60V transistor supplied in TO220 packaging. This power MOSFET is the latest development of the strip based process. The resulting transistor shows extremely high packing density for low on-resistance, rugged avalanche characterstics and less critical alignment steps. The transistor is particularly suitable for switching applications. For further technical specifications please refer to the attached datasheet.
- 60 Volt VDS
- RDS(on) 40 mOhm
- Gate Source Voltage 4V
- N Channel 60V
- Exceptional dv/dt capability
- 100% avalanche tested
- Application oriented characterisation
- MOSFET 60V 30A TO220
Specification
| Back order lead time | 5 Days |
| Continuous drain current | 30A |
| Drain source on resistance | 40MΩ |
| Drain source voltage | 60V |
| Input capacitance | 690pF |
| Maximum gate source voltage | 4V |
| Maximum operating temperature | 150°C |
| Mounting type | Through Hole |
| Package | TO220 |
| Power dissipation | 160W |
| Type | N-Channel |
