Starter Push Button Switch
SKU 480941
MPN: 480941
Availability:
123 in stock
Original price
£2.59
-
Original price
£2.59
Original price
£2.59
£2.59
£2.59
-
£2.59
Current price
£2.59

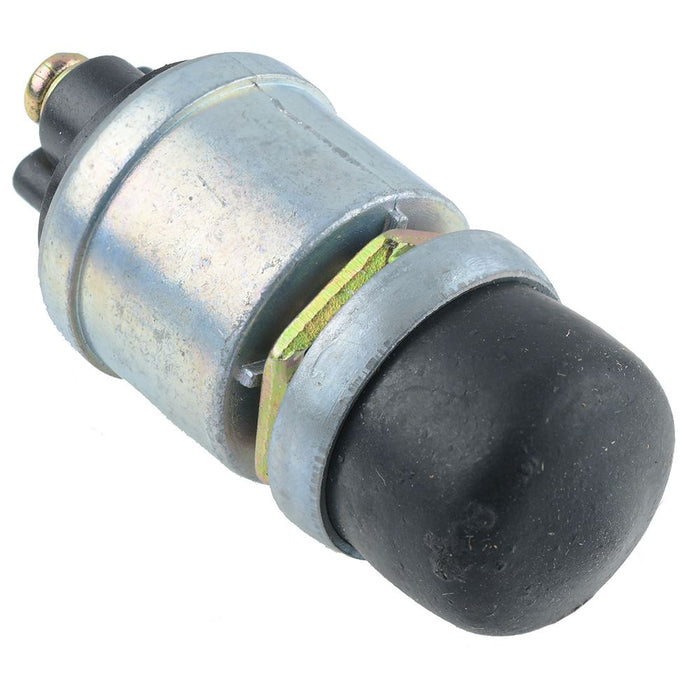

Automotive push button switch suitable for use as a horn or engine starter. The switch features a rubber button, and is waterproof making it ideal for a wide range of automotive applications.
Rating: 10A 12VDC Screw terminals Switch operation: Off-(On) Mounting hole diameter: 16mm Mechanical life: 10,000+ cycles
Specification
| Back Order Lead Time | 45 |
| Contact Configuration | SPST |
| Contact Rating | 10A 12VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 16mm |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 12VDC |
