SRL-5-E-S-2 On-On Keylock Key Switch SPDT 1A 125V
by Lorlin
SKU 481499
MPN: SRL-5-E-S-2
Availability:
335 in stock
Original price
£9.40
-
Original price
£9.40
Original price
£9.40
Inc VAT
£9.40
-
£9.40
Current price
£9.40
Inc VAT

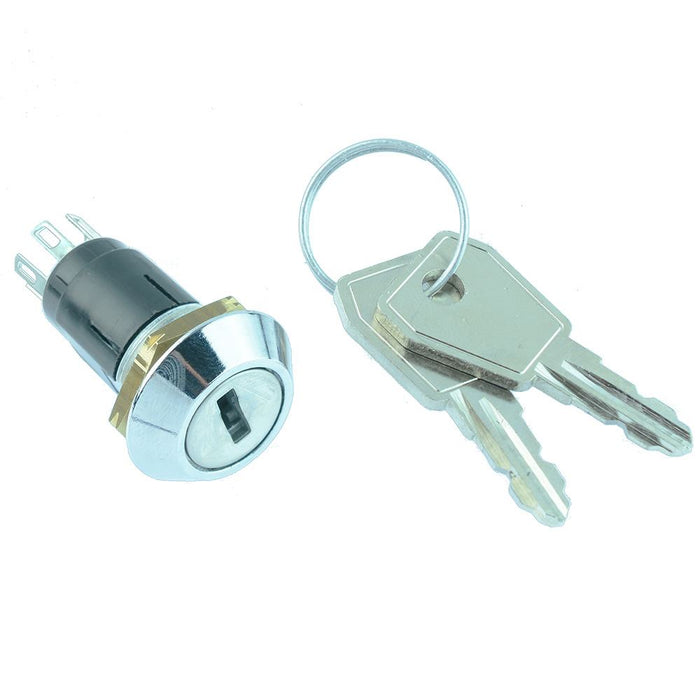

SRL-5-E-S-2 manufactured by Lorlin is a key lock switch featuring SPDT contacts and same keys suitable for a wide range of electrical applications.
On-On operation SPDT contacts Same keys Key withdrawal position: 1 Panel cut-out: 13 x 16mm Rating: 1A 125Vac Key travel: 90dg Chrome plated zinc alloy housing
Specification
| Actuation | Latching |
| Back order lead time | 90 Days |
| Contact configuration | SPDT |
| Contact rating | 1A 115Vac |
| Current rating | 1A |
| Material | Chrome Plated Zinc Alloy |
| Mounting style | Panel Mount |
| Number of positions | 2 |
| Operating temperature | -20°C to +65°C |
| Panel cut out | 13 x 16mm |
| Switch operation | On-On |
| Terminal type | Solder |
| Voltage rating | 115VAC |
