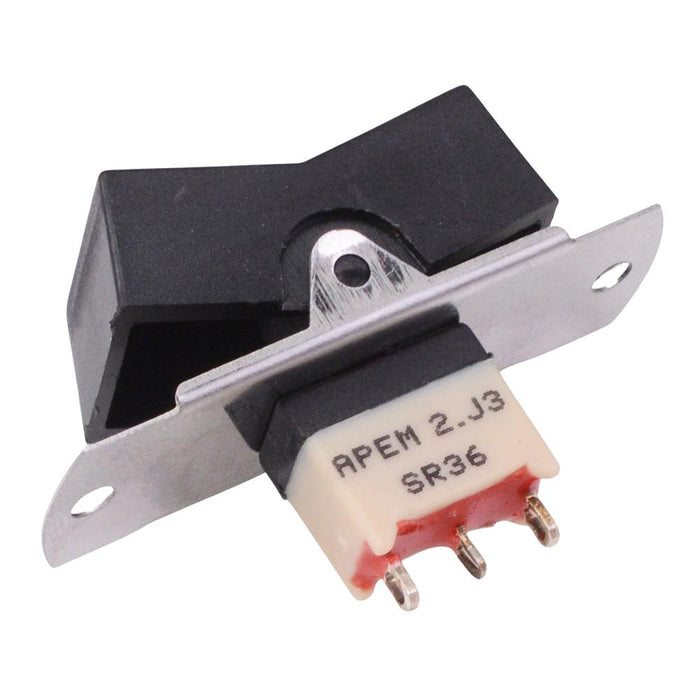

SR36S010012 APEM On-On Vertical Rocker Switch SPDT 4A 30VDC
by APEM
SKU 488074
MPN: SR36S010012
Availability:
45 in stock
Original price
£2.25
-
Original price
£2.25
Original price
£2.25
Inc VAT
£2.25
-
£2.25
Current price
£2.25
Inc VAT
The SR36S010012 is a washable miniature rocker switch manufactured by APEM. Featuring SPDT contacts and front/rear sealing, suitable for PCB mounting applications.
Black rocker actuator SPDT contacts On-On function Vertical mounting Silver terminals Compatible with wave soldering Rating: 4A 30VDC Terminal pitch: 4.7mm Panel cut-out: 27.5 x 15.5mm Mounting hole pitch: 35mm
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Colour | Black |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 40,000 Cycles |
| Illuminated | No |
| Material | Polyamide |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -20°C to +85°C |
| Panel cut out | 27.5 x 15.5mm |
| Pitch | 4.7mm |
| Switch operation | On-On |
| Terminal type | PCB |
| Voltage rating | 30VDC |
