SPST-NO SMD Reed Switch 350mA 175V - RI-80
by Comus
SKU 552554
MPN: RI-80-G
Availability:
Out of stock
Sold out
Original price
£3.64
-
Original price
£3.64
Original price
£3.64
Inc VAT
£3.64
-
£3.64
Current price
£3.64
Inc VAT

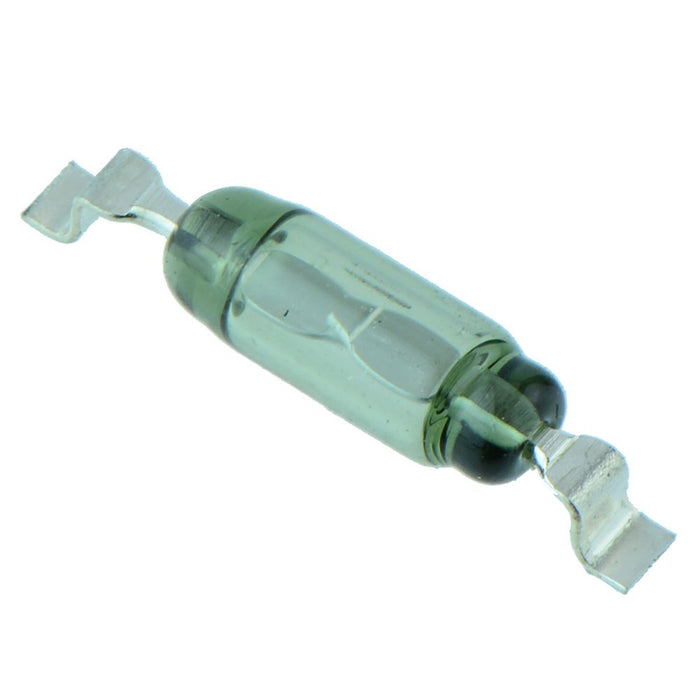

The RI-80-G is a ultra-micro dry-reed switch hermetically sealed in a gas-filled glass envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electro-magnet, a permanent magnet or a combination of both.
Ideal for proximity sensors, telecom & medical applications Contact layers: gold, sputtered ruthenium Superior glass-to-metal seal and blade alignment Maximum switching power: 5W Maximum switching voltage: 175VDC, 140VAC Maximum switching current: 350mA DC, 250mA AC Operating range: 5-15AT
Specification
| Back order lead time | 180 Days |
| Bounce time | 0.1ms |
| Carry current | 0.5A |
| Contact configuration | SPST-NO |
| Diameter | 1.8mm |
| Length | 5mm |
| Material | Rhodium |
| Maximum switching capacity | 5W |
| Maximum switching current | 0.25A |
| Maximum switching voltage | 175VDC, 140VAC |
| Operating temperature | -55°C to +125°C |
| Pull in sensitivity | 5-15AT |
| Release time | 20µs |
