SPST-NO Reed Switch Kit 3A - GC3823K

by Comus
SKU 552486

MPN: GC3823K

Availability:
19 in stock
Original price £4.12 - Original price £4.12
Original price
£4.12 Inc VAT
£4.12 - £4.12
Current price £4.12 Inc VAT

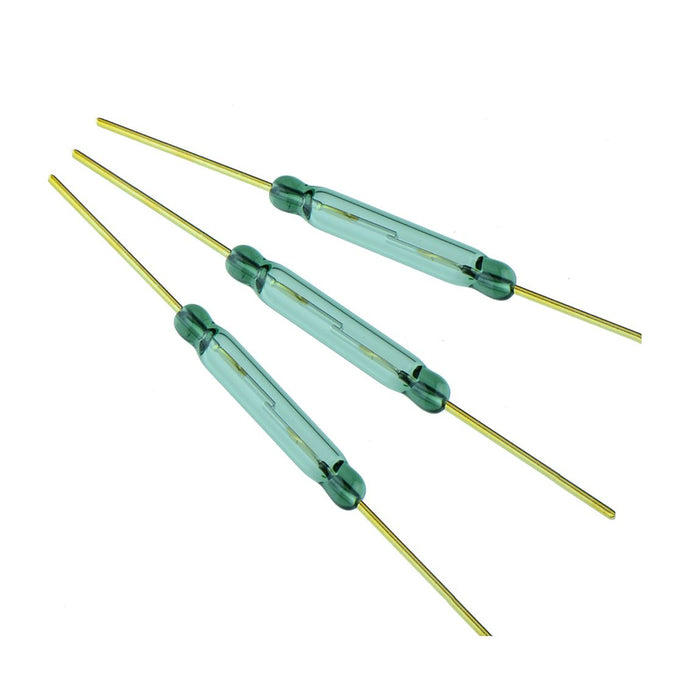

GC3823K kit provides a selection of sensitivity levels form the series allowing you to test which is the best for your application. The switches are hermetically sealed in a gas filled glass housing, featuring normally open contacts manufactured from Rhodium, actuated using an electro-magnet.

  • Includes 1qty of each sensitivity
  • Normally open contacts
  • Maximum switching voltage: 230V AC/DC
  • Maximum switching current: 3A
  • Maximum switching power: 60VA
  • Pull-in sensitivity: 30-40 / 45-60 / 60-70AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.5ms
    Carry current 4A
    Contact configuration SPST-NO
    Diameter 3.8mm
    Drop out sensitivity 15AT Min
    Length 24.5mm
    Material Rhodium
    Maximum switching capacity 60W/VA
    Maximum switching current 3A
    Maximum switching voltage 230VAC/DC
    Operating temperature -40°C to +125°C
    Pull in sensitivity 30-40 / 45-60 / 60-70AT
    Release time 0.1ms
