SPST-NO Reed Switch 500mA 400V - 2502-2314-020

by Comus
SKU 552473

MPN: 2502-2314-020

Availability:
30 in stock
Original price £1.17 - Original price £1.17
Original price
£1.17 Inc VAT
£1.17 - £1.17
Current price £1.17 Inc VAT

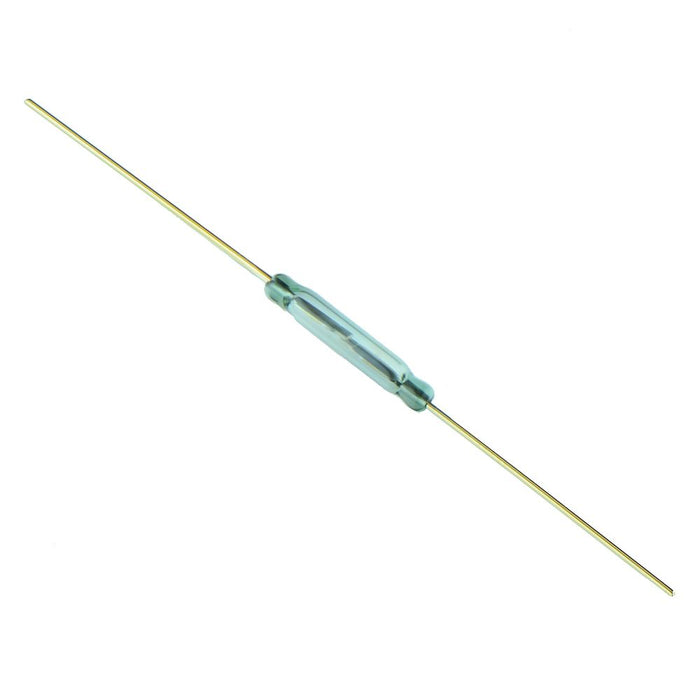

2502-2314-020 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Normally open contacts
  • Maximum switching voltage: 400V AC/DC
  • Maximum switching current: 0.5A
  • Maximum switching power: 10VA
  • Pull-in sensitivity: 10-35AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.2ms
    Carry current 1A
    Contact configuration SPST-NO
    Diameter 2.3mm
    Drop out sensitivity 5AT Min
    Length 14.5mm
    Material Rhodium
    Maximum switching capacity 10VA
    Maximum switching current 0.5A
    Maximum switching voltage 400VAC/DC
    Operating temperature -40°C to +125°C
    Pull in sensitivity 10-35AT
    Release time 0.05ms
