SPST-NO Reed Switch 500mA 200VDC 16-25AT - RI-07AA
by Comus
SKU 552496
MPN: RI-07AA
Availability:
101 in stock
Original price
£0.94
-
Original price
£0.94
Original price
£0.94
Inc VAT
£0.94
-
£0.94
Current price
£0.94
Inc VAT

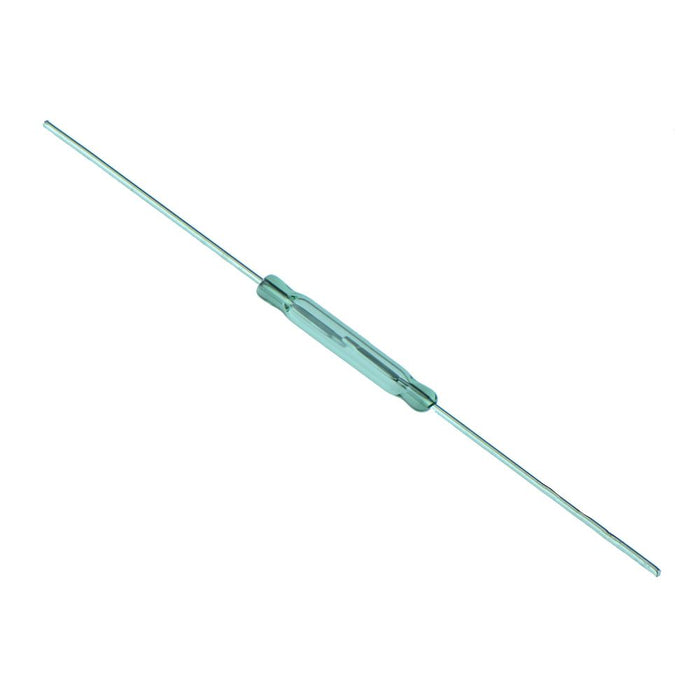

The RI-07AA pico dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.
Ideal for general purpose reed relays and sensors Contact layers: ruthenium on gold Superior glass-to-metal seal and blade alignment Maximum switching power: 10W Maximum switching voltage: 200VDC, 140VAC Maximum switching current: 500mA Operating range: 16-25AT
Specification
| Back order lead time | 180 Days |
| Bounce time | 0.05ms |
| Carry current | 1.75A |
| Contact configuration | SPST-NO |
| Diameter | 1.8mm |
| Length | 13.5mm |
| Material | Rhodium |
| Maximum switching capacity | 10W |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 200VDC, 140VAC |
| Operating temperature | -55°C to +125°C |
| Pull in sensitivity | 16-25AT |
| Release time | 30µs |
