SPST-NO Reed Switch 3A 230V - 2204-3823-050

by Comus
SKU 552471

MPN: 2202-3823-050

Availability:
98 in stock
Original price £2.59 - Original price £2.59
Original price
£2.59
£2.59 - £2.59
Current price £2.59

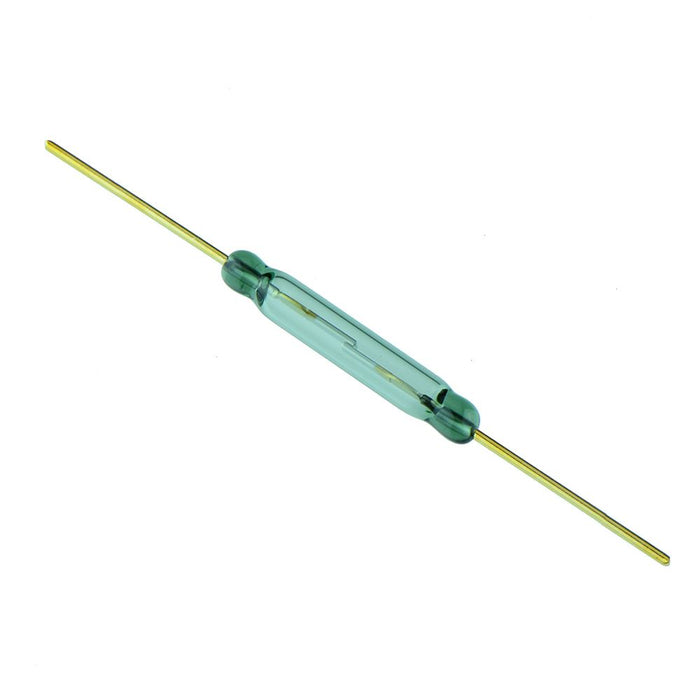

2204-3823-050 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.

  • Normally open contacts
  • Maximum switching voltage: 230V AC/DC
  • Maximum switching current: 3A
  • Maximum switching power: 60W/VA
  • Pull-in sensitivity: 30-80AT
  • Specification
    Back Order Lead Time 180 Days
    Bounce Time 0.5ms
    Carry Current 4A
    Contact Configuration SPST-NO
    Diameter 3.8mm
    Drop Out Sensitivity 15AT Min
    Length 24.5mm
    Material Rhodium
    Maximum Switching Capacity 60W/VA
    Maximum Switching Current 3A
    Maximum Switching Voltage 230VAC/DC
    Operating Temperature -40°C to +125°C
    Pull In Sensitivity 30-80AT
    Release Time 0.1ms
