SPST-NO Reed Switch 1A 200VDC 250VAC - RI-46B

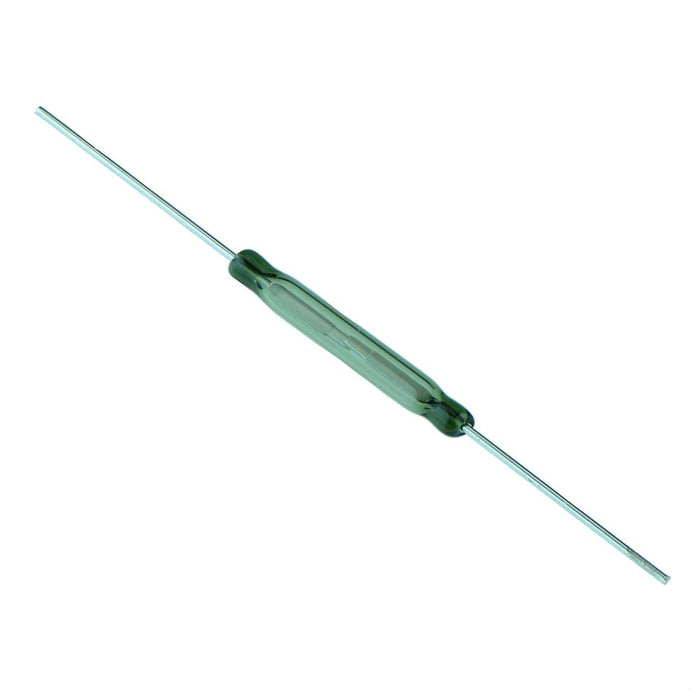

The RI-46B micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

Can switch main voltage

Contact layers: ruthenium on gold

Superior glass-to-metal seal and blade alignment

Excellent life expectancy and reliability

Maximum switching power: 40W

Maximum switching voltage: 200VDC, 250VAC

Maximum switching current: 1A

Operating range: 24-51AT
