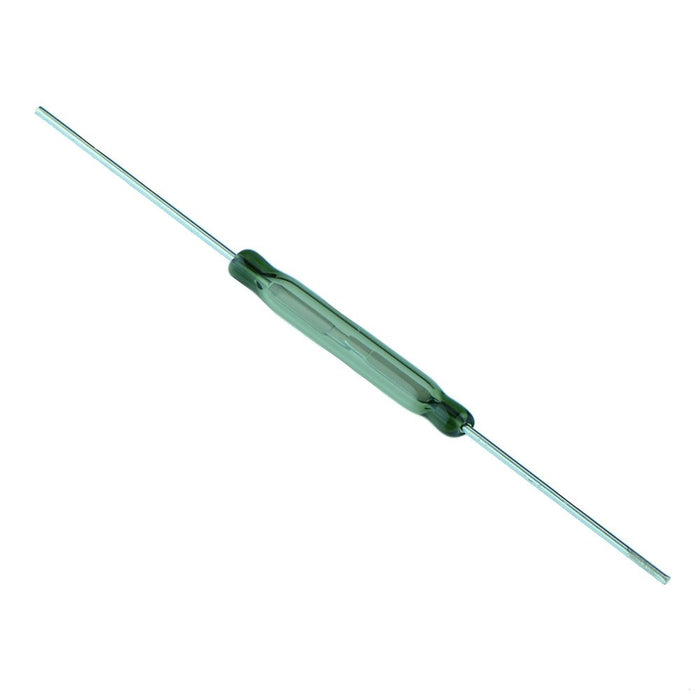

SPST-NO Reed Switch 1A 200V - RI-46A

by Comus
SKU 552505

MPN: RI-46A

Availability:
2900 in stock
Original price £0.78 - Original price £0.78
Original price
£0.78 Inc VAT
£0.78 - £0.78
Current price £0.78 Inc VAT
The RI-46A micro dry-reed switch is hermetically sealed in a gas-filled envelope. Single-pole, single-throw (SPST) type, having normally open contacts, and containing two magnetically actuated reeds. The switch is of the double-ended type and may be actuated by an electromagnet, a permanent magnet or a combination of both. The device is intended for use in sensors, relays, pulse counters or similar devices.

  • Can switch main voltage
  • Contact layers: ruthenium on gold
  • Superior glass-to-metal seal and blade alignment
  • Excellent life expectancy and reliability
  • Maximum switching power: 30W
  • Maximum switching voltage: 200VDC, 200VAC
  • Maximum switching current: 1A
  • Operating range: 15-28AT
  • Specification
    Back order lead time 180 Days
    Bounce time 0.15ms
    Carry current 2.5A
    Contact configuration SPST-NO
    Diameter 2.7mm
    Length 20.5mm
    Material Rhodium
    Maximum switching capacity 30W
    Maximum switching current 1A
    Maximum switching voltage 200VDC/AC
    Operating temperature -55°C to +125°C
    Pull in sensitivity 15-28AT
    Release time 30µs
