SPST-NO Reed Switch 0.5A 230V - 2206-2725-020
by Comus
SKU 552472
MPN: 2206-2725-020
Availability:
100 in stock
Original price
£1.44
-
Original price
£1.44
Original price
£1.44
Inc VAT
£1.44
-
£1.44
Current price
£1.44
Inc VAT

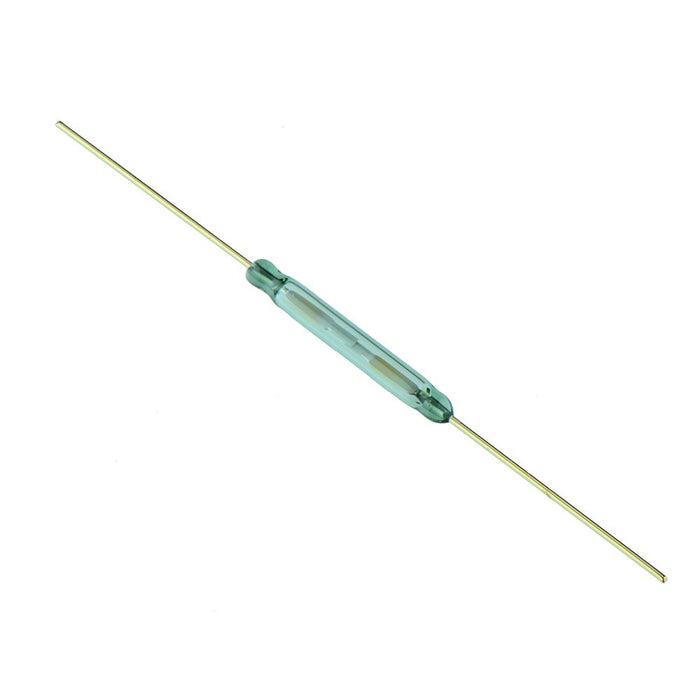

2206-2725-020 is a dry reed switch that has been hermetically sealed in a gas filled glass housing. The switch features normally open contacts manufactured from Rhodium, and is actuated using an electro-magnet.
Normally open contacts Maximum switching voltage: 230V AC/DC Maximum switching current: 0.5A Maximum switching power: 10VA Pull-in sensitivity: 20-50AT
Specification
| Back order lead time | 180 Days |
| Bounce time | 0.5ms |
| Carry current | 0.8A |
| Contact configuration | SPST-NO |
| Diameter | 2.6mm |
| Drop out sensitivity | 10AT Min |
| Length | 18.5mm |
| Material | Rhodium |
| Maximum switching capacity | 10W/VA |
| Maximum switching current | 0.5A |
| Maximum switching voltage | 230VAC/DC |
| Operating temperature | -40°C to +125°C |
| Pull in sensitivity | 20-50AT |
| Release time | 0.1ms |
